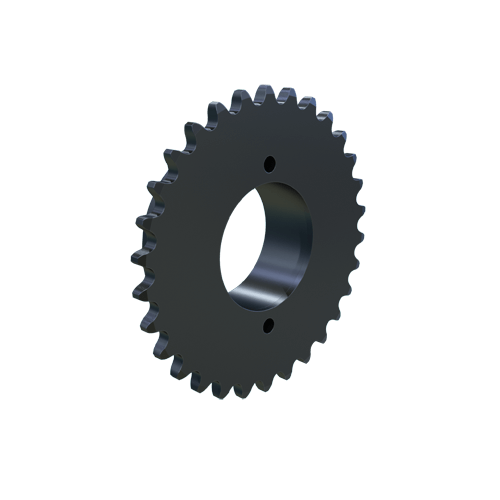

MARTIN SPROCKET 35H30 Sprocket, MST, 35 Chain, 30 Teeth, 3.588 Inch Pitch Dia., 3.793 Inch O.D., Steel
Get it by Tuesday, Jun 17
€117.69 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | H |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 2 1/2" |
| Individually Packaged | Yes |
| Length Through Bore | 7/8" |
| Material | Steel |
| Max. Bore Size | 1 1/2" |
| Min. Bore Size | 3/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 30 |
| Outside Dia. | 3.793" |
| Pitch Dia. | 3.5875" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 15/16" |
| Storage Dimension Length | 3 7/8" |
| Storage Dimension Width | 3 7/8" |
| Weight | 1 lbs. |
| Ship weight (kg) | 0.42 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 9.63 |
| Ship width (cm) | 9.63 |
