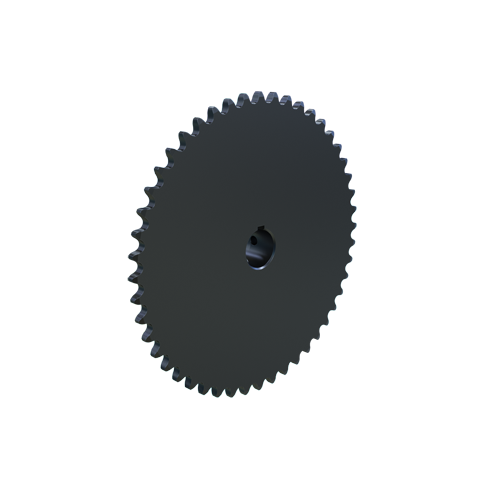

MARTIN SPROCKET 35BS48 3/4 Roller Chain Sprocket, Bore To Size, 0.750 Inch Bore, 5.946 Inch Outside Dia. Steel
Get it by Tuesday, Jun 17
€102.64 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 2 1/4" |
| Individually Packaged | No |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 1" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 48 |
| Outside Dia. | 5.946" |
| Pitch Dia. | 5.7337" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 5.946" |
| Storage Dimension Width | 5.946" |
| Ship weight (kg) | 0.89 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 15.11 |
| Ship width (cm) | 15.11 |
