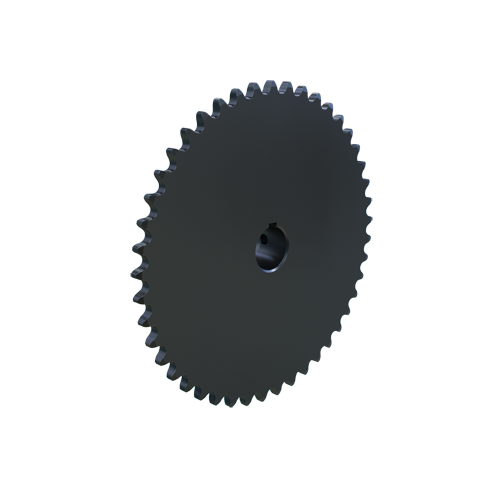

MARTIN SPROCKET 35BS45 3/4 Roller Chain Sprocket, Bore To Size, 0.750 Inch Bore, 5.588 Inch Outside Dia. Steel
Get it by Tuesday, Jun 17
€101.56 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Welded |
| Finished Bore Size | 3/4" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 2 1/4" |
| Individually Packaged | No |
| Keyway Size | 3/16" x 3/32" |
| Length Through Bore | 1" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 45 |
| Outside Dia. | 5.588" |
| Pitch Dia. | 5.3758" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 1" |
| Storage Dimension Length | 5.588" |
| Storage Dimension Width | 5.588" |
| Weight | 1.84 lbs. |
| Ship weight (kg) | 0.83 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.2 |
| Ship width (cm) | 14.2 |
| Product | Model | Price | |
|---|---|---|---|
 |
35BS9 3/8 | €22.16 | |
 |
35BS10 3/8 | €22.61 | |
 |
35BS11 3/8 | €23.53 | |
 |
35BS10 1/2 | €37.46 | |
 |
35BS11 1/2 | €23.53 | |
 |
35BS12 1/2 | €24.23 | |
 |
35BS13 1/2 | €25.14 |
