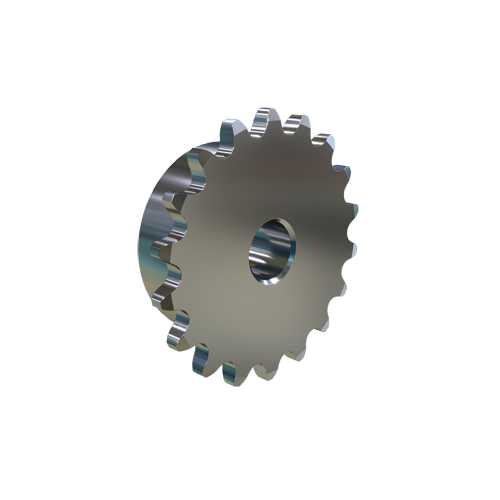

MARTIN SPROCKET 35B18SS Roller Chain Sprocket, 35 Chain, 18 Teeth, 2.160 Inch Pitch Dia., 2.352 Inch O.D., SS
Get it by Tuesday, Jun 17
€162.27 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 35 |
| Chain Pitch | 3/8" |
| Construction | Solid |
| Finished Bore Size | 1/2" |
| For Chain Number | 35 |
| For Chain Pitch | 3/8" |
| Hub Configuration | B |
| Hub Outside Dia. | 1.7188" |
| Individually Packaged | No |
| Length Through Bore | 3/4" |
| Material | Stainless Steel |
| Max. Bore Size | 1 3/16" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 18 |
| Outside Dia. | 2.352" |
| Pitch Dia. | 2 4/25" |
| Single Strand Tooth Thickness | 0.168" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 2.472" |
| Storage Dimension Width | 2.472" |
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 5.97 |
| Ship width (cm) | 5.97 |
