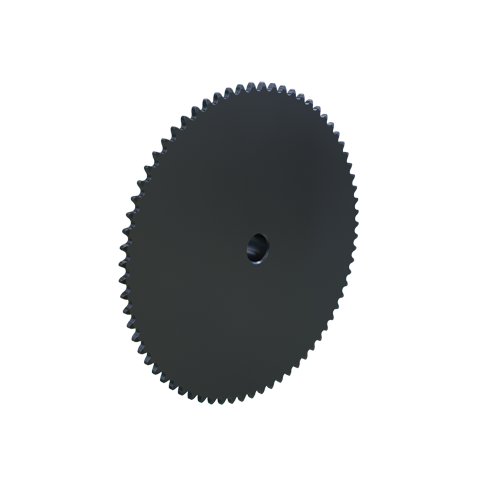

MARTIN SPROCKET 25B70 Sprocket, 25 Chain, 70 Teeth, 5.572 Inch Pitch Dia., 5.717 Inch O.D., Steel
Get it by Tuesday, Jun 17
€95.21 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 25 |
| Chain Pitch | 1/4" |
| Construction | Solid |
| Finished Bore Size | 1/2" |
| For Chain Number | 25 |
| For Chain Pitch | 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 2" |
| Individually Packaged | No |
| Length Through Bore | 3/4" |
| Material | Steel |
| Max. Bore Size | 1 3/8" |
| Min. Bore Size | 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 70 |
| Outside Dia. | 5.717" |
| Pitch Dia. | 5.5723" |
| Single Strand Tooth Thickness | 0.11" |
| Storage Dimension Height | 3/4" |
| Storage Dimension Length | 5.717" |
| Storage Dimension Width | 5.717" |
| Weight | 1.26 lbs. |
| Ship weight (kg) | 0.57 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 14.53 |
| Ship width (cm) | 14.53 |
