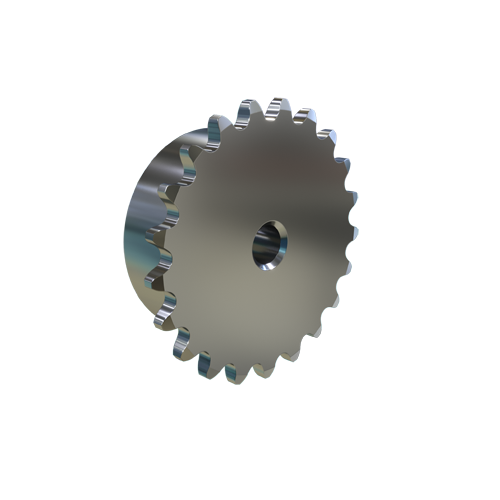

MARTIN SPROCKET 25B21SS Roller Chain Sprocket, 25 Chain, 21 Teeth, 1.678 Inch Pitch Dia., 1.809 Inch O.D., SS
Get it by Tuesday, Jun 17
€177.26 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 25 |
| Chain Pitch | 1/4" |
| Construction | Solid |
| Finished Bore Size | 1/4" |
| For Chain Number | 25 |
| For Chain Pitch | 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 1 3/8" |
| Individually Packaged | No |
| Length Through Bore | 5/8" |
| Material | Stainless Steel |
| Max. Bore Size | 7/8" |
| Min. Bore Size | 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 21 |
| Outside Dia. | 1.809" |
| Pitch Dia. | 1.678" |
| Single Strand Tooth Thickness | 0.11" |
| Storage Dimension Height | 5/8" |
| Storage Dimension Length | 1.889" |
| Storage Dimension Width | 1.889" |
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 1.59 |
| Ship length (cm) | 4.6 |
| Ship width (cm) | 4.6 |
