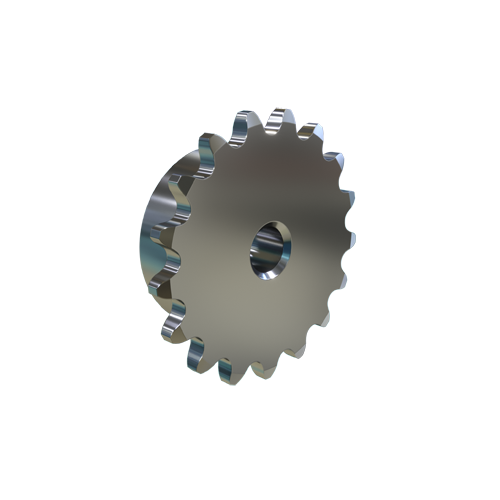

MARTIN SPROCKET 25B17SS Roller Chain Sprocket, 25 Chain, 17 Teeth, 1.361 Inch Pitch Dia., 1.487 Inch O.D., SS
Get it by Tuesday, Jun 17
€157.44 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 25 |
| Chain Pitch | 1/4" |
| Construction | Solid |
| Finished Bore Size | 1/4" |
| For Chain Number | 25 |
| For Chain Pitch | 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 1.0313" |
| Individually Packaged | No |
| Length Through Bore | 1/2" |
| Material | Stainless Steel |
| Max. Bore Size | 5/8" |
| Min. Bore Size | 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 17 |
| Outside Dia. | 1.487" |
| Pitch Dia. | 1.361" |
| Single Strand Tooth Thickness | 0.11" |
| Storage Dimension Height | 1/2" |
| Storage Dimension Length | 1.568" |
| Storage Dimension Width | 1.568" |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 3.78 |
| Ship width (cm) | 3.78 |
