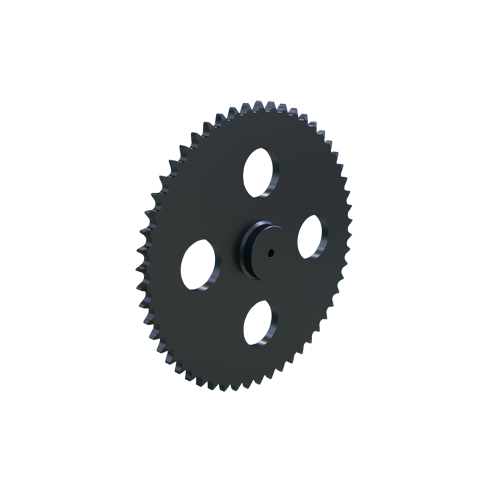

MARTIN SPROCKET 240C54 Sprocket, 240 Chain, 54 Teeth, 51.595 Inch Pitch Dia., 53.308 Inch O.D., Steel
Get it by Tuesday, Jun 17
€9,420.23 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 240 |
| Chain Pitch | 3" |
| Construction | Welded With Lightening Holes |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 240 |
| For Chain Pitch | 3" |
| Hub Configuration | C |
| Hub Outside Dia. | 10" |
| Individually Packaged | No |
| Length Through Bore | 6 3/4" |
| Material | Steel |
| Max. Bore Size | 7" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 54 |
| Outside Dia. | 53.308" |
| Pitch Dia. | 51.5953" |
| Single Strand Tooth Thickness | 1.738" |
| Storage Dimension Height | 6 3/4" |
| Storage Dimension Length | 53.31" |
| Storage Dimension Width | 53.31" |
| Weight | 1102.21 lbs. |
| Ship weight (kg) | 495.99 |
| Ship height (cm) | 17.15 |
| Ship length (cm) | 135.41 |
| Ship width (cm) | 135.41 |
