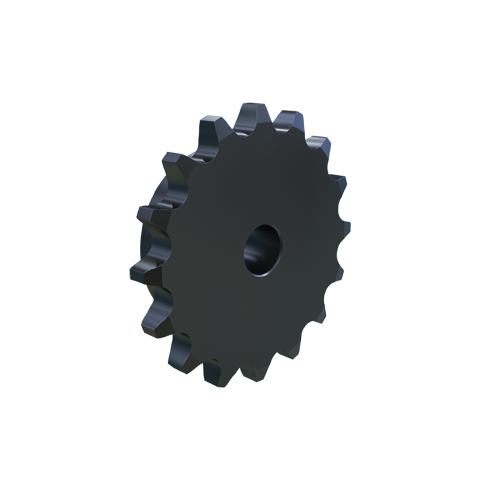

MARTIN SPROCKET 2080B16 Sprocket, 2080 Chain, 16 Teeth, 5.226 Inch Pitch Dia., 5.630 Inch O.D., Steel
Get it by Tuesday, Jun 17
€179.05 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 2080 |
| Chain Pitch | 2" |
| Construction | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 2080 |
| For Chain Pitch | 2" |
| Hub Configuration | B |
| Hub Outside Dia. | 3.7969" |
| Individually Packaged | Yes |
| Length Through Bore | 1 1/2" |
| Material | Steel |
| Max. Bore Size | 2.5313" |
| Min. Bore Size | 1" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 16 |
| Outside Dia. | 5.63" |
| Pitch Dia. | 5.2263" |
| Single Strand Tooth Thickness | 0.575" |
| Storage Dimension Height | 1 9/16" |
| Storage Dimension Length | 5 3/4" |
| Storage Dimension Width | 5 3/4" |
| Weight | 5.72 lbs. |
| Ship weight (kg) | 2.57 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.3 |
| Ship width (cm) | 14.3 |
