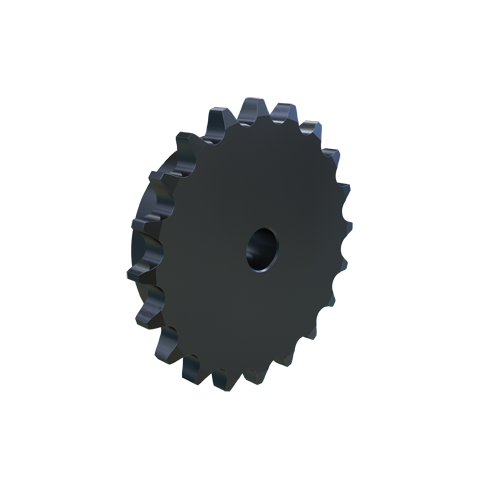

MARTIN SPROCKET 2060B20 Sprocket, 2060 Chain, 20 Teeth, 4.854 Inch Pitch Dia., 5.190 Inch O.D., Steel
Get it by Tuesday, Jun 17
€142.20 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 2060 |
| Chain Pitch | 1 1/2" |
| Construction | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 2060 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 3 7/8" |
| Individually Packaged | Yes |
| Length Through Bore | 1 1/4" |
| Material | Steel |
| Max. Bore Size | 2 9/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 20 |
| Outside Dia. | 5.19" |
| Pitch Dia. | 4.8541" |
| Single Strand Tooth Thickness | 0.459" |
| Storage Dimension Height | 1 5/16" |
| Storage Dimension Length | 5 1/4" |
| Storage Dimension Width | 5 1/4" |
| Weight | 4.46 lbs. |
| Ship weight (kg) | 2.01 |
| Ship height (cm) | 3.18 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 13.18 |
