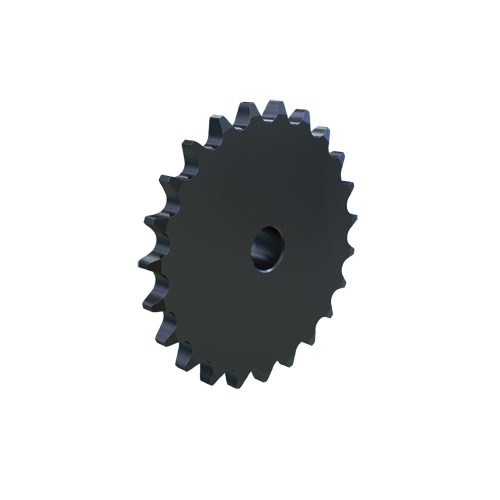

MARTIN SPROCKET 2050B23 Sprocket, 2050 Chain, 23 Teeth, 4.633 Inch Pitch Dia., 4.920 Inch O.D., Steel
Get it by Tuesday, Jun 17
€132.06 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 2050 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| Finished Bore Size | 3/4" |
| For Chain Number | 2050 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 3" |
| Individually Packaged | Yes |
| Length Through Bore | 1" |
| Material | Steel |
| Max. Bore Size | 2" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 23 |
| Outside Dia. | 4 23/25" |
| Pitch Dia. | 4.6331" |
| Single Strand Tooth Thickness | 0.343" |
| Storage Dimension Height | 1 1/8" |
| Storage Dimension Length | 5 1/4" |
| Storage Dimension Width | 5 1/4" |
| Weight | 2.7 lbs. |
| Ship weight (kg) | 1.22 |
| Ship height (cm) | 2.86 |
| Ship length (cm) | 12.5 |
| Ship width (cm) | 12.5 |
