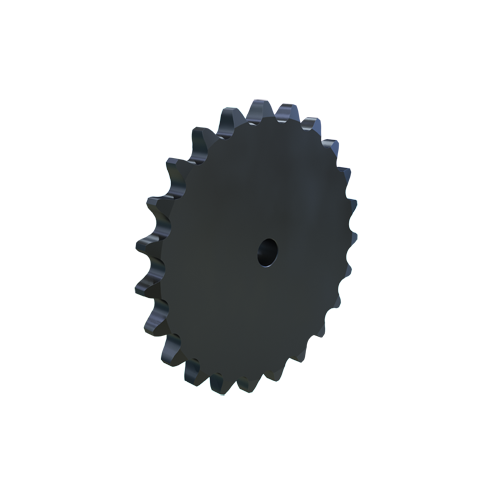

MARTIN SPROCKET 160B23 Sprocket, 160 Chain, 23 Teeth, 14.688 Inch Pitch Dia., 15.751 Inch O.D., Steel
Get it by Tuesday, Jun 17
€905.24 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 160 |
| Chain Pitch | 2" |
| Construction | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 160 |
| For Chain Pitch | 2" |
| Hub Configuration | B |
| Hub Outside Dia. | 7" |
| Individually Packaged | No |
| Length Through Bore | 2 3/4" |
| Material | Steel |
| Max. Bore Size | 5 1/4" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 23 |
| Outside Dia. | 15.751" |
| Pitch Dia. | 14.6879" |
| Single Strand Tooth Thickness | 1.156" |
| Storage Dimension Height | 2 3/4" |
| Storage Dimension Length | 15 3/4" |
| Storage Dimension Width | 15 3/4" |
| Weight | 68.82 lbs. |
| Ship weight (kg) | 30.97 |
| Ship height (cm) | 6.99 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 40.01 |
