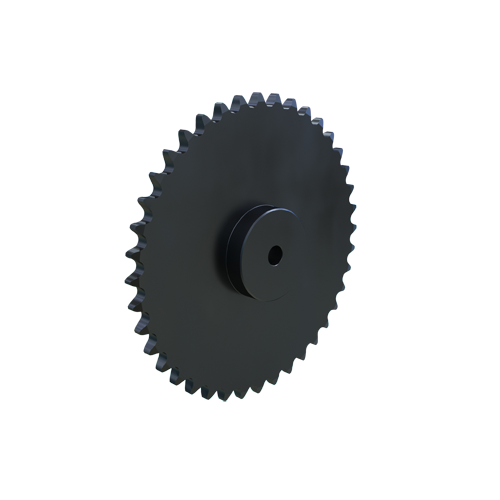

MARTIN SPROCKET 140C40 Sprocket, 140 Chain, 40 Teeth, 22.305 Inch Pitch Dia., 23.286 Inch O.D., Steel
Get it by Tuesday, Jun 17
€1,029.93 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 140 |
| Chain Pitch | 1 3/4" |
| Construction | Welded With Lightening Holes |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 140 |
| For Chain Pitch | 1 3/4" |
| Hub Configuration | C |
| Hub Outside Dia. | 7" |
| Individually Packaged | No |
| Length Through Bore | 4" |
| Material | Steel |
| Max. Bore Size | 5 1/4" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 40 |
| Outside Dia. | 23.286" |
| Pitch Dia. | 22.3046" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 4" |
| Storage Dimension Length | 23.29" |
| Storage Dimension Width | 23.29" |
| Weight | 130.44 lbs. |
| Ship weight (kg) | 54.45 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 59.16 |
| Ship width (cm) | 59.16 |
