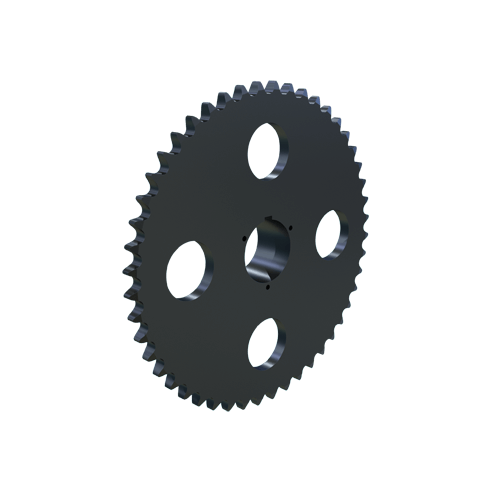

MARTIN SPROCKET 120S48 Sprocket, 120 Chain, 48 Teeth, 22.935 Inch Pitch Dia., 23.786 Inch O.D., Steel
Get it by Tuesday, Jun 17
€1,221.74 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | S1 |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Construction | Welded With Lightening Holes |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 6 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 3 5/16" |
| Material | Steel |
| Max. Bore Size | 4 1/4" |
| Min. Bore Size | 1 11/16" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 48 |
| Outside Dia. | 23.786" |
| Pitch Dia. | 22.9347" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 3.31" |
| Storage Dimension Length | 23.786" |
| Storage Dimension Width | 23.786" |
| Weight | 95 lbs. |
| Ship weight (kg) | 42.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 60.43 |
| Ship width (cm) | 60.43 |
