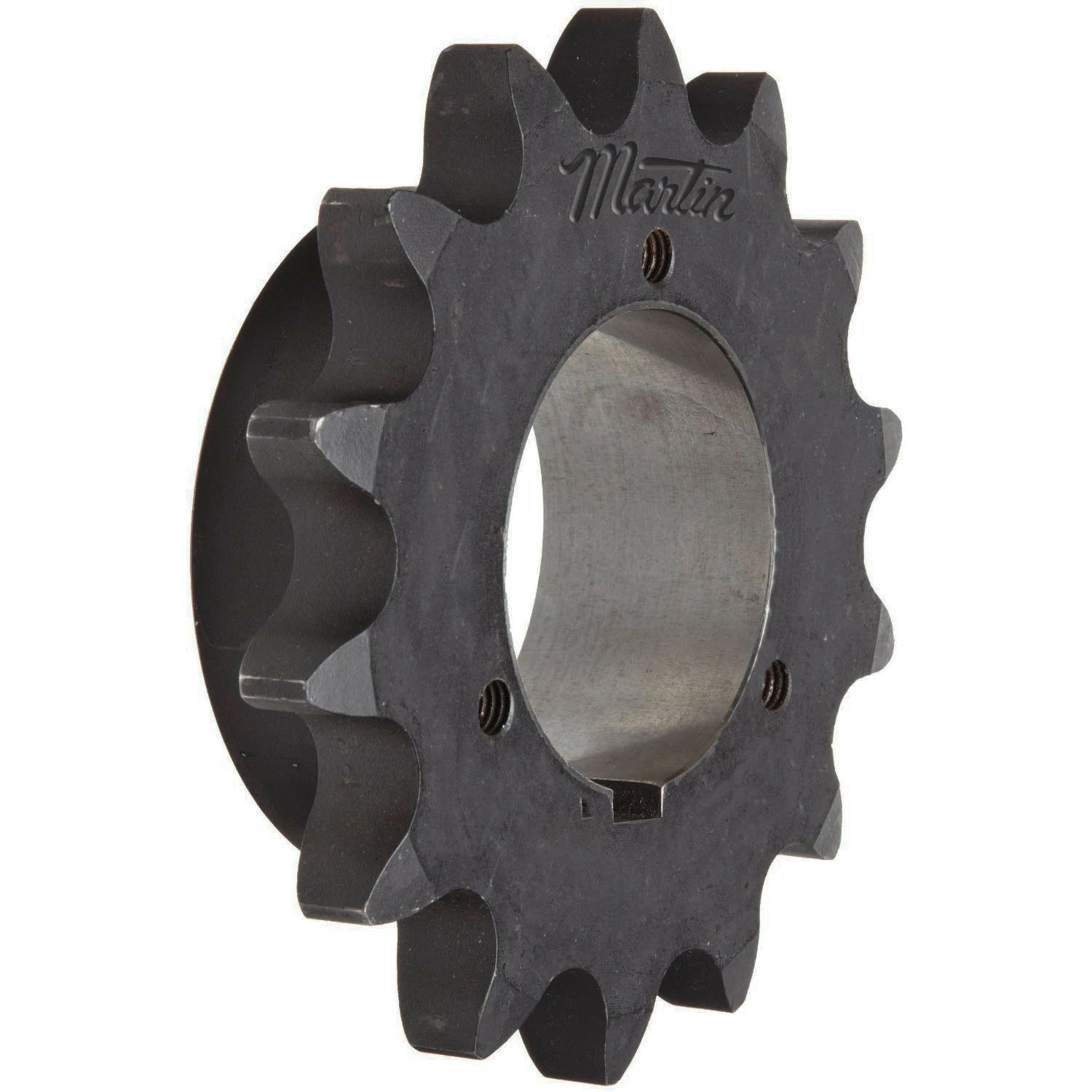

MARTIN SPROCKET 120R22H Sprocket, 120 Chain, 22 Teeth, 10.540 Inch Pitch Dia., 11.333 Inch O.D., Steel
Get it by Tuesday, Jun 17
€647.50 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R1 |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Construction | Welded |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 22 |
| Outside Dia. | 11.333" |
| Pitch Dia. | 10.54" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 11.333" |
| Storage Dimension Width | 11.333" |
| Weight | 22 lbs. |
| Ship weight (kg) | 9.32 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 28.78 |
| Ship width (cm) | 28.78 |
