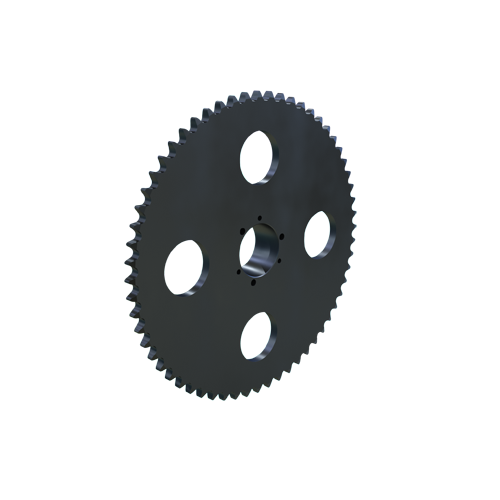

MARTIN SPROCKET 120J60 Sprocket, QD, 120 Chain, 60 Teeth, 28.661 Inch Pitch Dia., 29.522 Inch O.D., Steel
Get it by Wednesday, Jun 18
€1,288.58 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | J |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Construction | Welded With Lightening Holes |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | B |
| Hub Outside Dia. | 7 3/4" |
| Individually Packaged | No |
| Length Through Bore | 3 3/16" |
| Material | Steel |
| Max. Bore Size | 4 1/2" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 60 |
| Outside Dia. | 29.522" |
| Pitch Dia. | 28.661" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 3.19" |
| Storage Dimension Length | 29.522" |
| Storage Dimension Width | 29.522" |
| Weight | 140 lbs. |
| Ship weight (kg) | 63 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 74.98 |
| Ship width (cm) | 74.98 |
