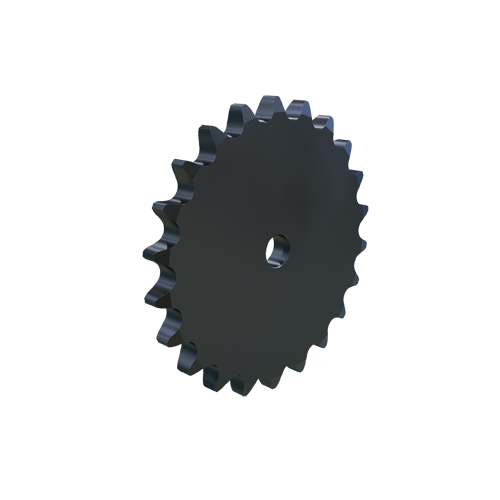

MARTIN SPROCKET 120A22 Sprocket, 120 Chain, 22 Teeth, 10.540 Inch Pitch Dia., 11.333 Inch O.D., Steel
Get it by Tuesday, Jun 17
€274.15 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 120 |
| Chain Pitch | 1 1/2" |
| Construction | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 120 |
| For Chain Pitch | 1 1/2" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 7/8" |
| Material | Steel |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 22 |
| Outside Dia. | 11.333" |
| Pitch Dia. | 10.54" |
| Single Strand Tooth Thickness | 0.924" |
| Storage Dimension Height | 0.924" |
| Storage Dimension Length | 11.333" |
| Storage Dimension Width | 11.333" |
| Weight | 20.26 lbs. |
| Ship weight (kg) | 9 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 28.78 |
| Ship width (cm) | 28.78 |
