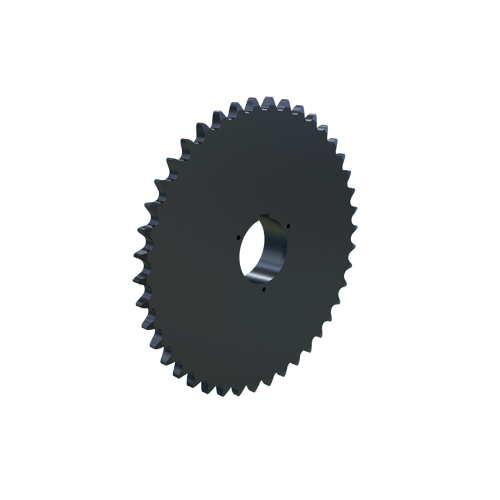

MARTIN SPROCKET 100R42 Sprocket, 100 Chain, 42 Teeth, 16.727 Inch Pitch Dia., 17.430 Inch O.D., Steel
Get it by Wednesday, Jun 18
€725.99 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | R1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 5 1/2" |
| Individually Packaged | No |
| Keyway Size | 3/4" |
| Length Through Bore | 2" |
| Material | Steel |
| Max. Bore Size | 3 3/4" |
| Min. Bore Size | 1 1/8" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 42 |
| Outside Dia. | 17.43" |
| Pitch Dia. | 16.7269" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2" |
| Storage Dimension Length | 17.43" |
| Storage Dimension Width | 17.43" |
| Weight | 43 lbs. |
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 44.27 |
| Ship width (cm) | 44.27 |
