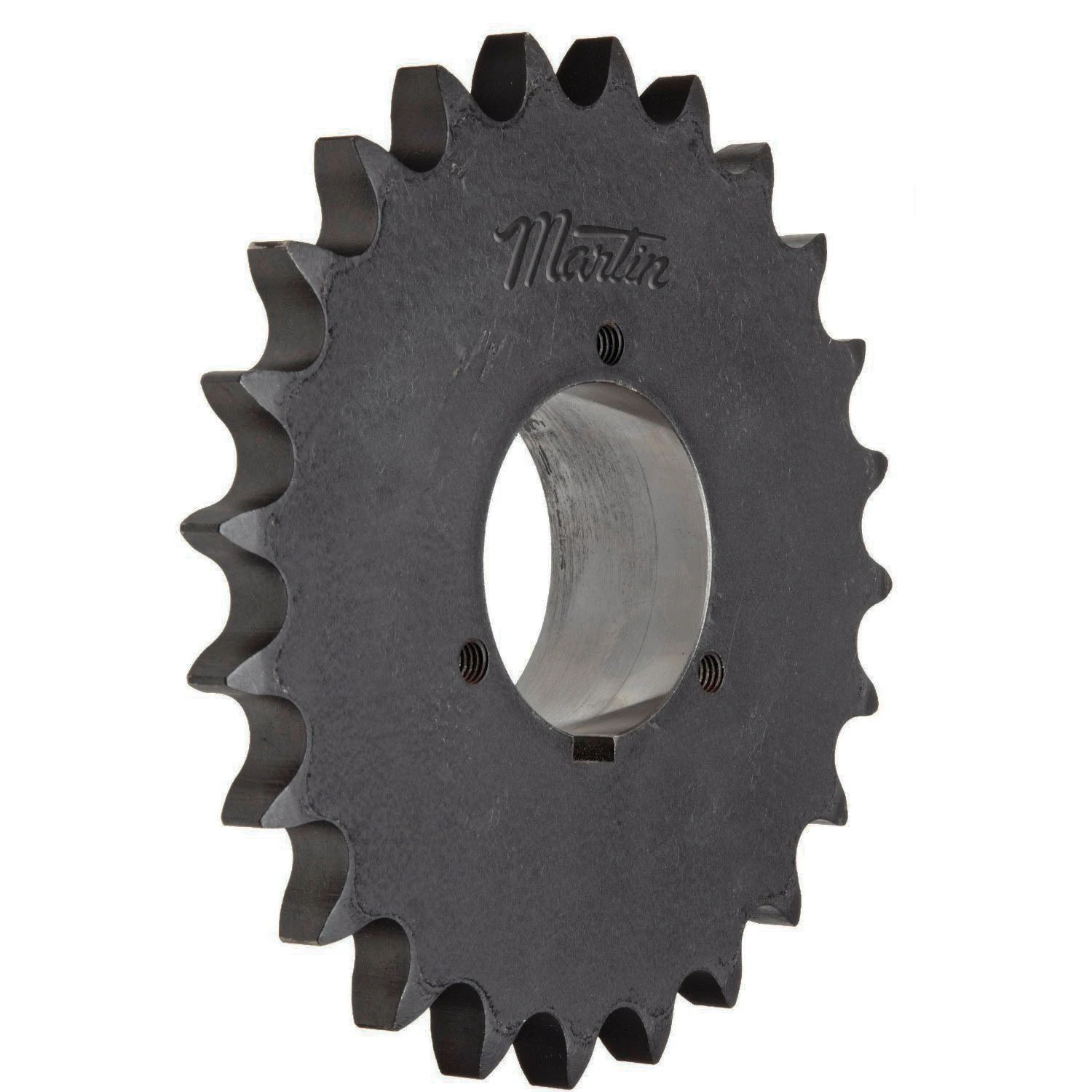

| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | Q1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/4" |
| Individually Packaged | No |
| Keyway Size | 1/2" |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 35 |
| Outside Dia. | 14.639" |
| Pitch Dia. | 13.9448" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 14.639" |
| Storage Dimension Width | 14.639" |
| Weight | 28.45 lbs. |
| Ship weight (kg) | 12.75 |
| Ship height (cm) | 4.45 |
| Ship length (cm) | 37.19 |
| Ship width (cm) | 37.19 |
