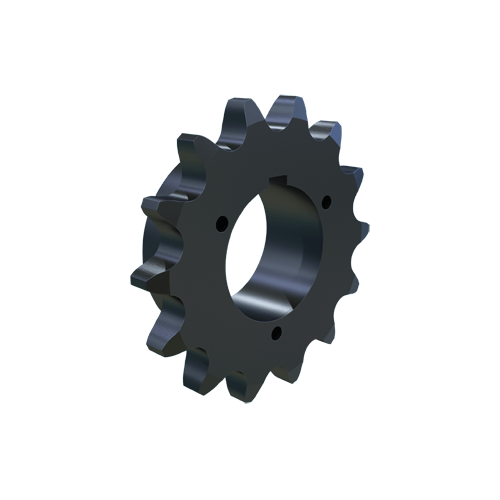

MARTIN SPROCKET 100Q14H Roller Chain Sprocket, 100 Chain, Bushed MST, 14 Teeth, 5.617 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€337.33 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Bushed Bore |
| Bushing Part Number | Q1 |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hardened Teeth | 1 |
| Hub Configuration | B |
| Hub Outside Dia. | 4 1/8" |
| Individually Packaged | No |
| Keyway Size | 1/2" |
| Length Through Bore | 1 3/4" |
| Material | Steel |
| Max. Bore Size | 2 11/16" |
| Min. Bore Size | 3/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 14 |
| Outside Dia. | 6.227" |
| Pitch Dia. | 5.6174" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 1 3/4" |
| Storage Dimension Length | 6.227" |
| Storage Dimension Width | 6.227" |
| Weight | 5 lbs. |
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 15.82 |
| Ship width (cm) | 15.82 |
