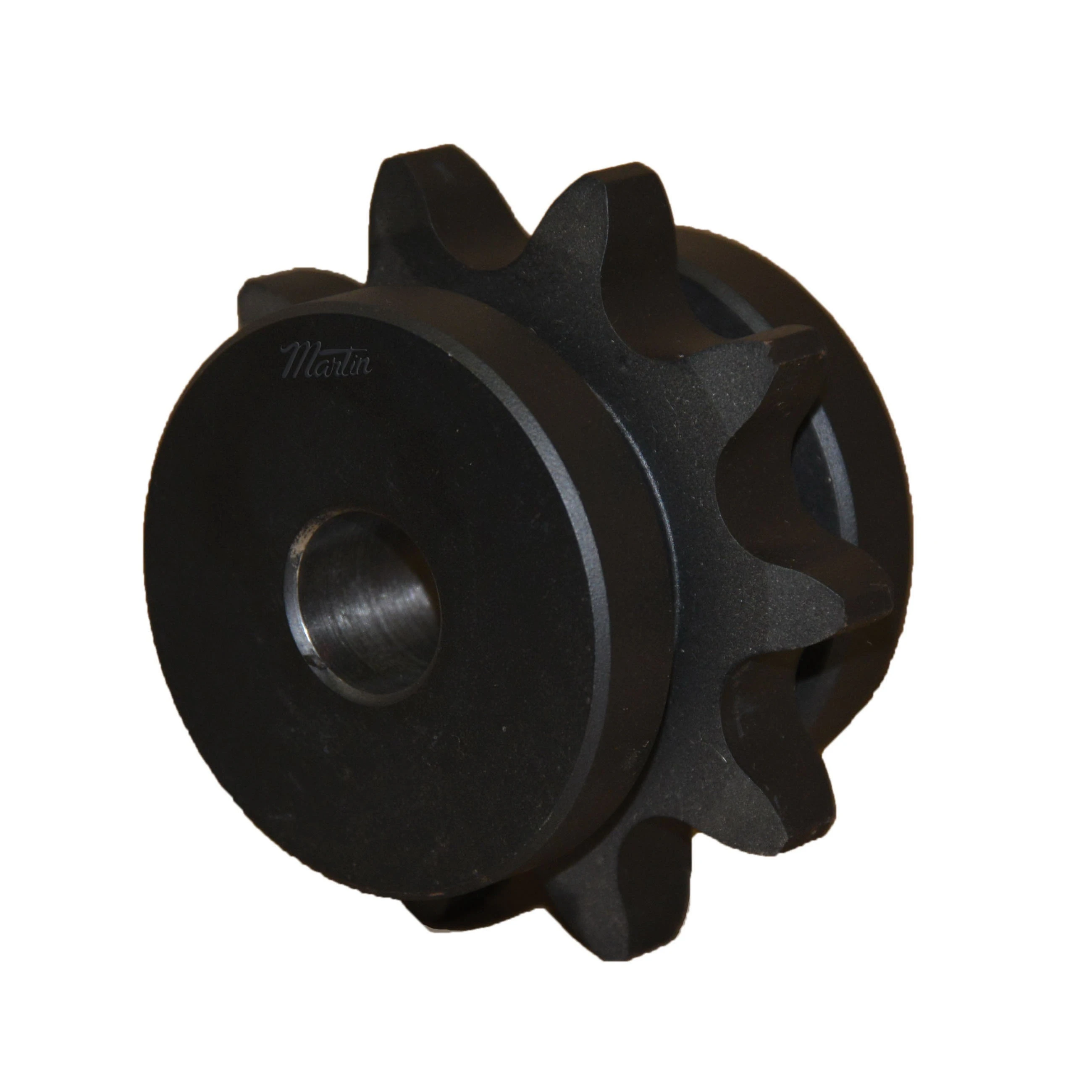

| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded |
| Finished Bore Size | 1" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | C |
| Hub Outside Dia. | 4 3/16" |
| Individually Packaged | No |
| Length Through Bore | 2 7/8" |
| Material | Steel |
| Max. Bore Size | 2 3/4" |
| Min. Bore Size | 1" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 14 |
| Outside Dia. | 6.226" |
| Pitch Dia. | 5.618" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2 7/8" |
| Storage Dimension Length | 6.226" |
| Storage Dimension Width | 6.226" |
| Weight | 12.19 lbs. |
| Ship weight (kg) | 5.49 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 15.82 |
| Ship width (cm) | 15.82 |
