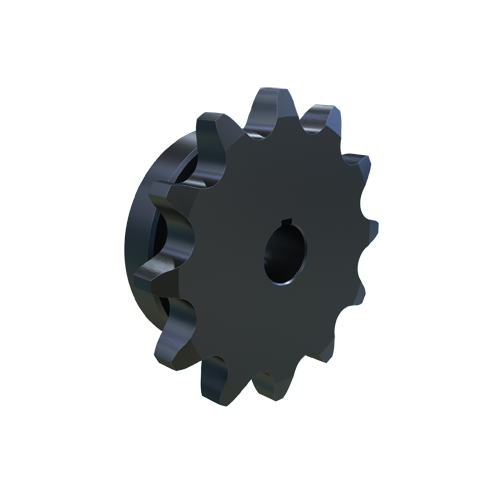

MARTIN SPROCKET 100BS12 1 Roller Chain Sprocket, Bore To Size, 1 Inch Bore, 5.415 Inch Outside Dia. Steel
Get it by Tuesday, Jun 17
€244.62 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| Finished Bore Size | 1" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 4" |
| Hub Recessed For Chain | 1 |
| Individually Packaged | No |
| Keyway Size | 1/4" x 1/8" |
| Length Through Bore | 1 7/8" |
| Material | Steel |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 12 |
| Outside Dia. | 5.415" |
| Pitch Dia. | 4.8296" |
| Set Screw Location | (1) Over Keyway And (1) At 90° |
| Set Screw Size | 5/16"-18 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 1 22/25" |
| Storage Dimension Length | 5.415" |
| Storage Dimension Width | 5.415" |
| Weight | 6.4 lbs. |
| Ship weight (kg) | 2.88 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.77 |
| Ship width (cm) | 13.77 |
| Product | Model | Price | |
|---|---|---|---|
 |
100BS8 1 | €124.70 | |
 |
100BS9 1 | €158.84 | |
 |
100BS10 1 | €172.71 | |
 |
100BS11 1 | €194.32 | |
|
100BS13 1 | €223.17 | |
 |
100BS8 1 3/16 | €124.70 | |
 |
100BS9 1 3/16 | €158.84 |
