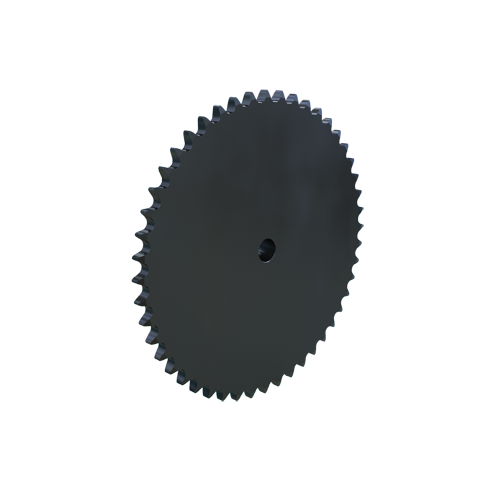

MARTIN SPROCKET 100B48 Roller Chain Sprocket, 100 Chain, Stock Bore, 48 Teeth, 19.112 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€618.01 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded |
| Finished Bore Size | 1 1/2" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 6" |
| Individually Packaged | No |
| Length Through Bore | 2 1/2" |
| Material | Steel |
| Max. Bore Size | 4" |
| Min. Bore Size | 1 1/2" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 48 |
| Outside Dia. | 19.821" |
| Pitch Dia. | 19.1122" |
| Set Screw Size | 1/4"-20 |
| Set Screw Thread Type | Coarse |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2 1/2" |
| Storage Dimension Length | 19.82" |
| Storage Dimension Width | 19.82" |
| Weight | 67.5 lbs. |
| Ship weight (kg) | 30.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 50.34 |
| Ship width (cm) | 50.34 |
