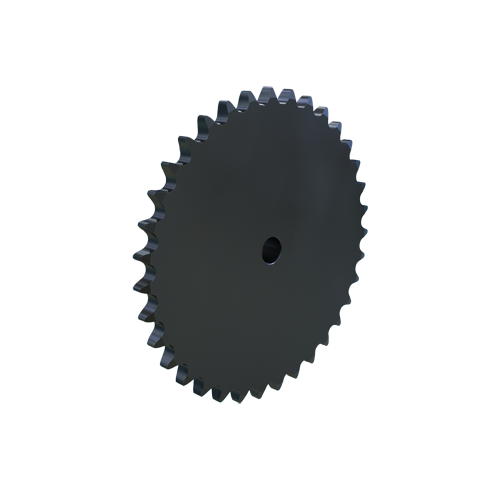

MARTIN SPROCKET 100B35 Roller Chain Sprocket, 100 Chain, Stock Bore, 35 Teeth, 13.945 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€389.81 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Welded |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | B |
| Hub Outside Dia. | 5" |
| Individually Packaged | No |
| Length Through Bore | 2 1/2" |
| Material | Steel |
| Max. Bore Size | 3 5/16" |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 35 |
| Outside Dia. | 14.639" |
| Pitch Dia. | 13.9448" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 2 1/2" |
| Storage Dimension Length | 14 16/25" |
| Storage Dimension Width | 14 16/25" |
| Weight | 37.81 lbs. |
| Ship weight (kg) | 17.01 |
| Ship height (cm) | 6.35 |
| Ship length (cm) | 37.19 |
| Ship width (cm) | 37.19 |
