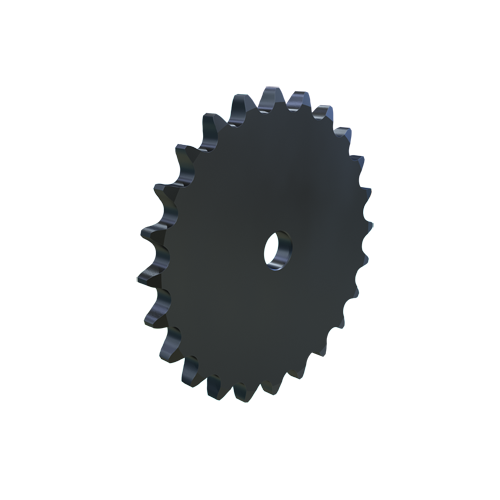

MARTIN SPROCKET 100A24 Roller Chain Sprocket, 100 Chain, Stock Bore, 24 Teeth, 9.577 Inch Pitch Dia., Steel
Get it by Tuesday, Jun 17
€143.02 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Roller Chain Sprocket |
| Bore Type | Finished Bore |
| Chain Number | 100 |
| Chain Pitch | 1 1/4" |
| Construction | Solid |
| Finished Bore Size | 1 1/4" |
| For Chain Number | 100 |
| For Chain Pitch | 1 1/4" |
| Hub Configuration | A |
| Individually Packaged | No |
| Length Through Bore | 0.656" |
| Material | Steel |
| Min. Bore Size | 1 1/4" |
| Number Of Chain Rows | 1 |
| Number Of Teeth | 24 |
| Outside Dia. | 10.245" |
| Pitch Dia. | 9.5766" |
| Single Strand Tooth Thickness | 0.692" |
| Storage Dimension Height | 0.692" |
| Storage Dimension Length | 10.245" |
| Storage Dimension Width | 10.245" |
| Weight | 12.48 lbs. |
| Ship weight (kg) | 5.62 |
| Ship height (cm) | 1.75 |
| Ship length (cm) | 26.04 |
| Ship width (cm) | 26.04 |
