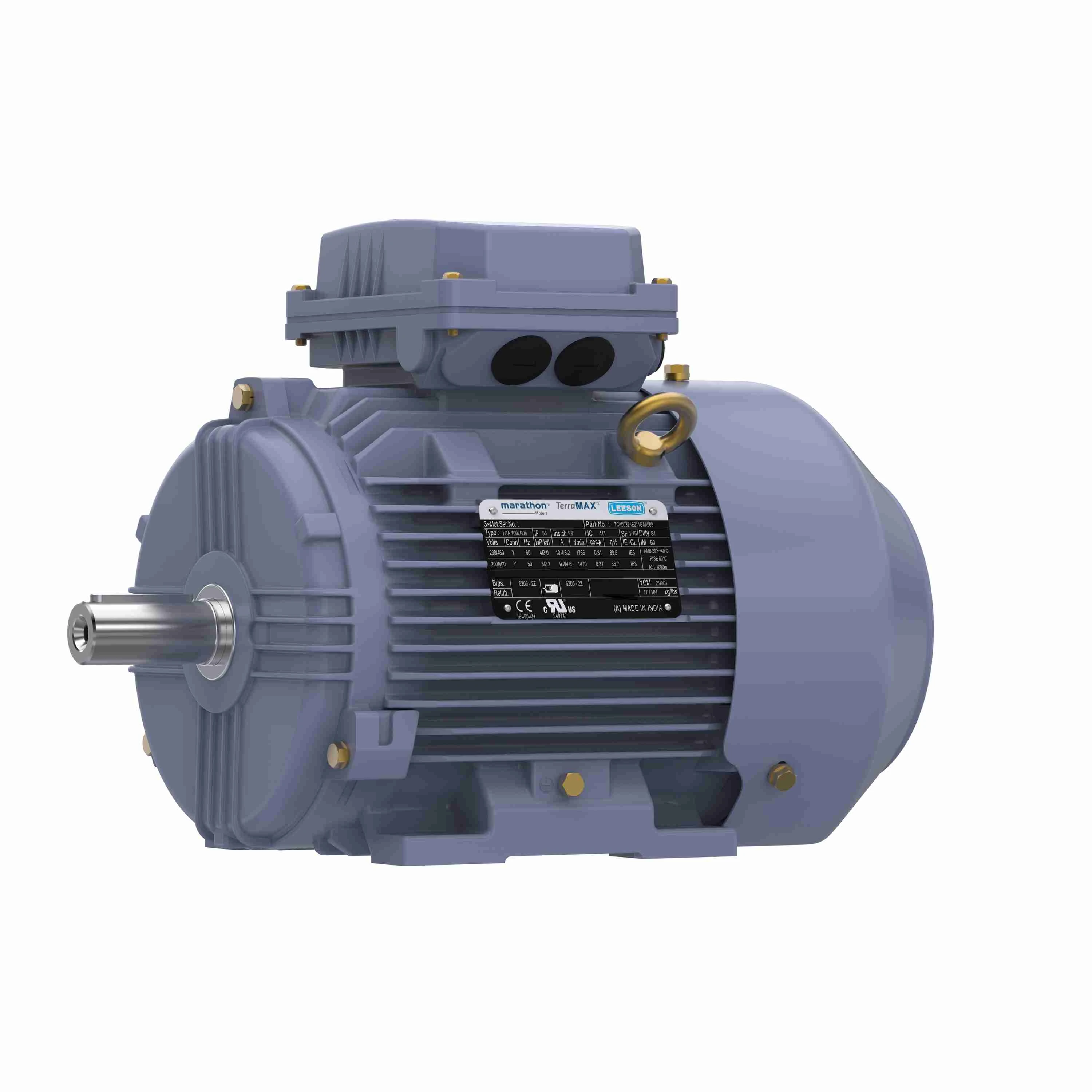

| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Application | General Application |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 92.4% |
| Efficiency Group | Premium |
| Frame | 160M |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 37.5/18.7A |
| Hp | 15 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1775 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Overall Length | 622 mm |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Length | 110 mm |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Hz | 60 |
| Ins. Class | Class F |
| Length Less Shaft | 512 mm |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Cast Iron |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 92.4% |
| Standards | CE CERTIFIED, UL LISTED |
| Weight | 341.7 lbs. |
| Ship weight (kg) | 153.8 |
| Ship height (cm) | 68.35 |
| Ship length (cm) | 77.27 |
| Ship width (cm) | 46.56 |
| Country of Origin | IN |
