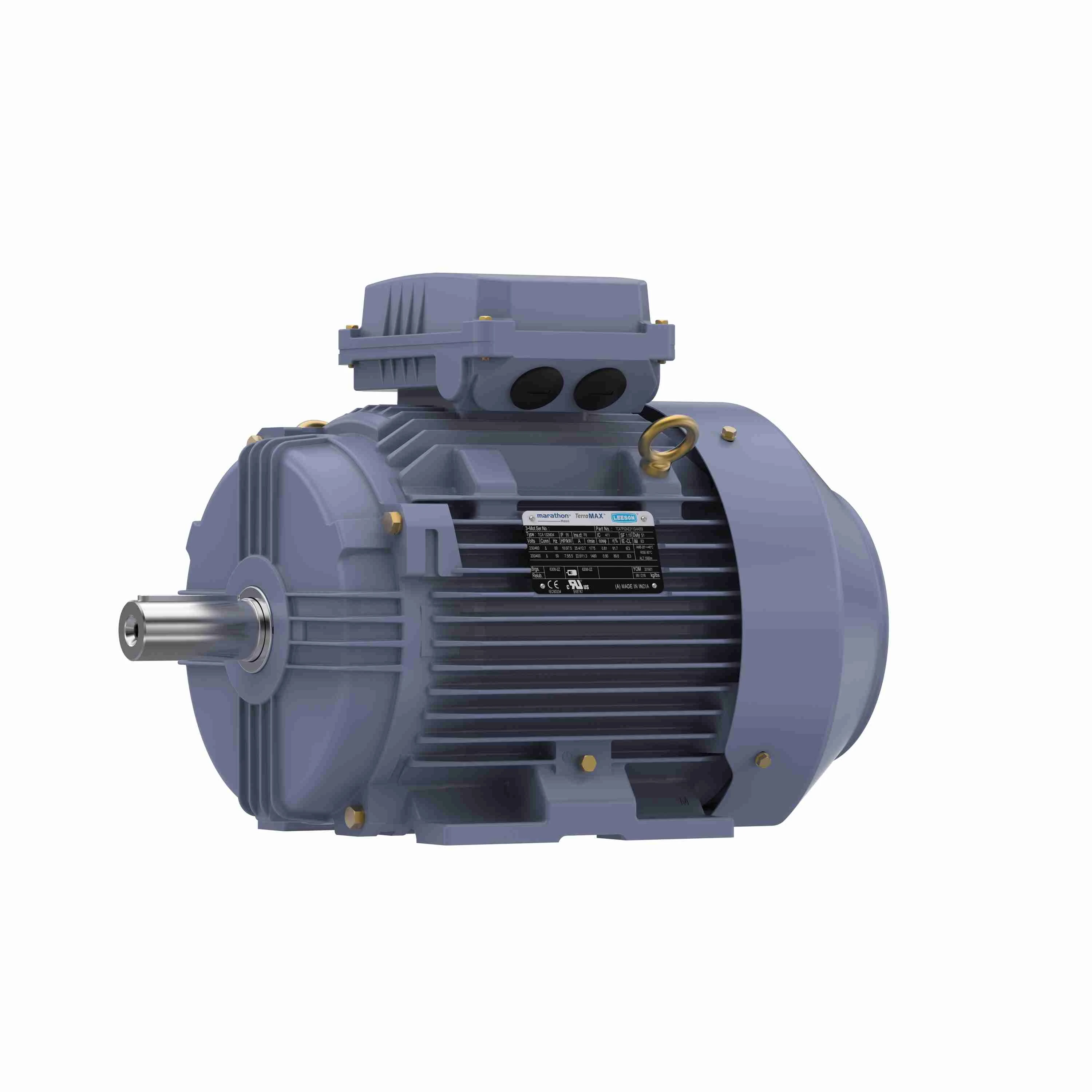

| Item | Metric Motor |
| Bearing Type | Ball |
| Bearings | Ball |
| Cc Number | CC003A |
| Design | N |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 132M |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Full Load Amps | 16.2/8.1A |
| Hp | 5 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length | 503 mm |
| Length Less Shaft | 423 mm |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1180 RPM |
| Nema Design | N |
| No. Of Speeds | 1 |
| Nominal Efficiency | 91% |
| Number Of Speeds | 1 |
| Overall Length | 503 mm |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 38 mm |
| Shaft Length | 80 mm |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Standards | CE, UL RECOGNIZED |
| Weight | 189.6 lbs. |
| Ship weight (kg) | 85.33 |
| Ship height (cm) | 44.08 |
| Ship length (cm) | 54.48 |
| Ship width (cm) | 32.69 |
| Country of Origin | IN |
