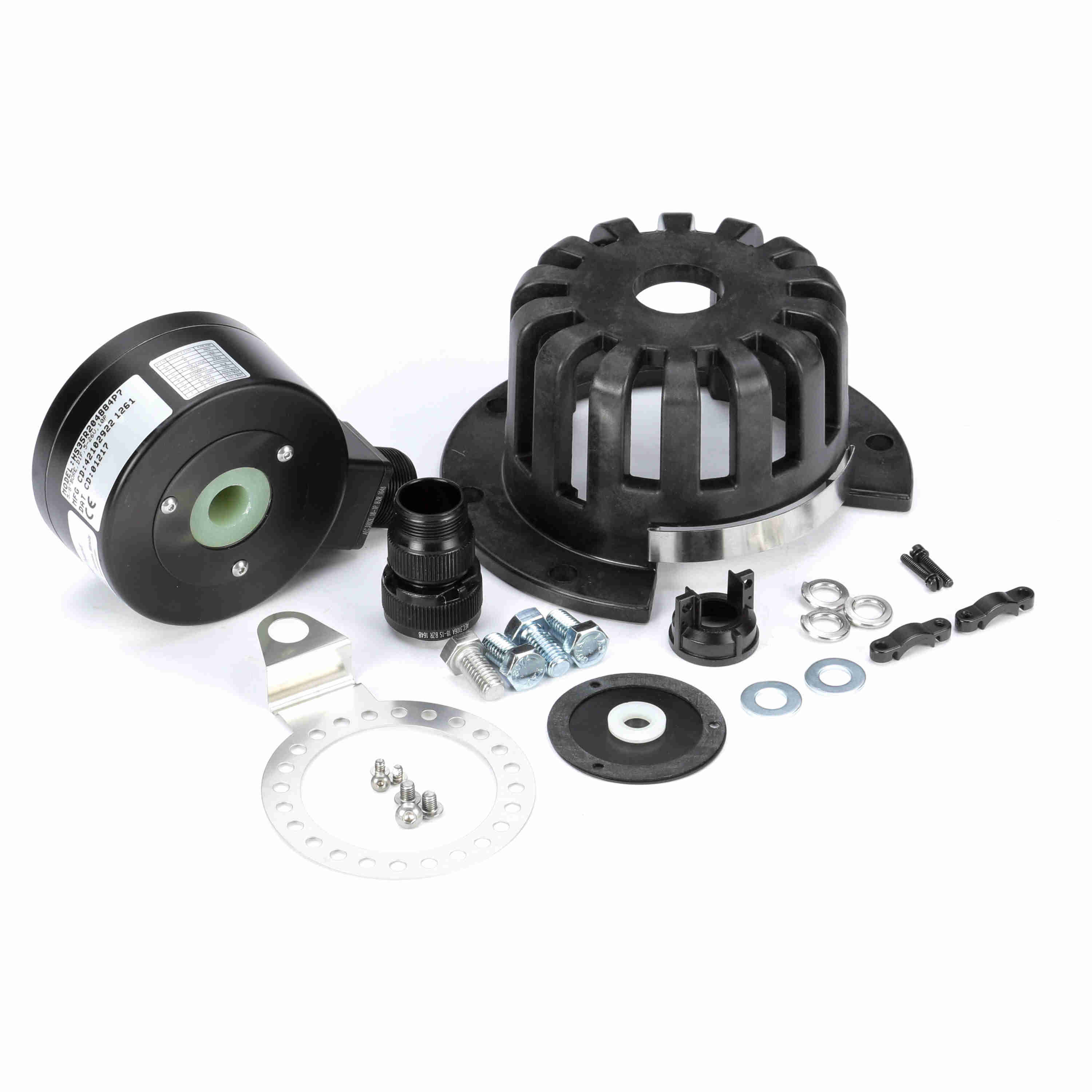

| Item | Encoder Kit |
| Amps | 100 mA |
| Construction | Die Cast Aluminum |
| Enclosure Material | Aluminum |
| For Use With | Black Max Motors |
| Ip Rating | IP67 |
| Length | 3 5/16" |
| Max. Ambient Temp. | 100°C |
| Max. Amps | 100 mA |
| Mounting | Hollow Shaft |
| Mounting Type | Hollow Shaft |
| Ode Shaft Dia. | 5/8" |
| Output Voltage | 5-26V DC |
| Overall Dia. | 4 1/2" |
| Overall Length | 3 5/16" |
| Requires | Black Max Motor, VFD With Encoder Capability |
| Resolution | 2048 nsec. |
| Shaft Dia. | 5/8" |
| Wire Termination | 10 Pin MS Connector |
| Diameter | 4 1/2" |
| Enclosure Rating | IP67 |
| Maximum Ambient Temperature | 100°C |
| Maximum Current | 100 mA |
| Ode Shaft Diameter | 5/8" |
| Standards | CE, UL RECOGNIZED |
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| HS code | 8503005000 |
| Country of Origin | US |
| Product | Model | Price | |
|---|---|---|---|
 |
KIT HS351024-NV | €1,862.34 | |
 |
KIT HS35A/B1024-NV | €2,068.97 |
