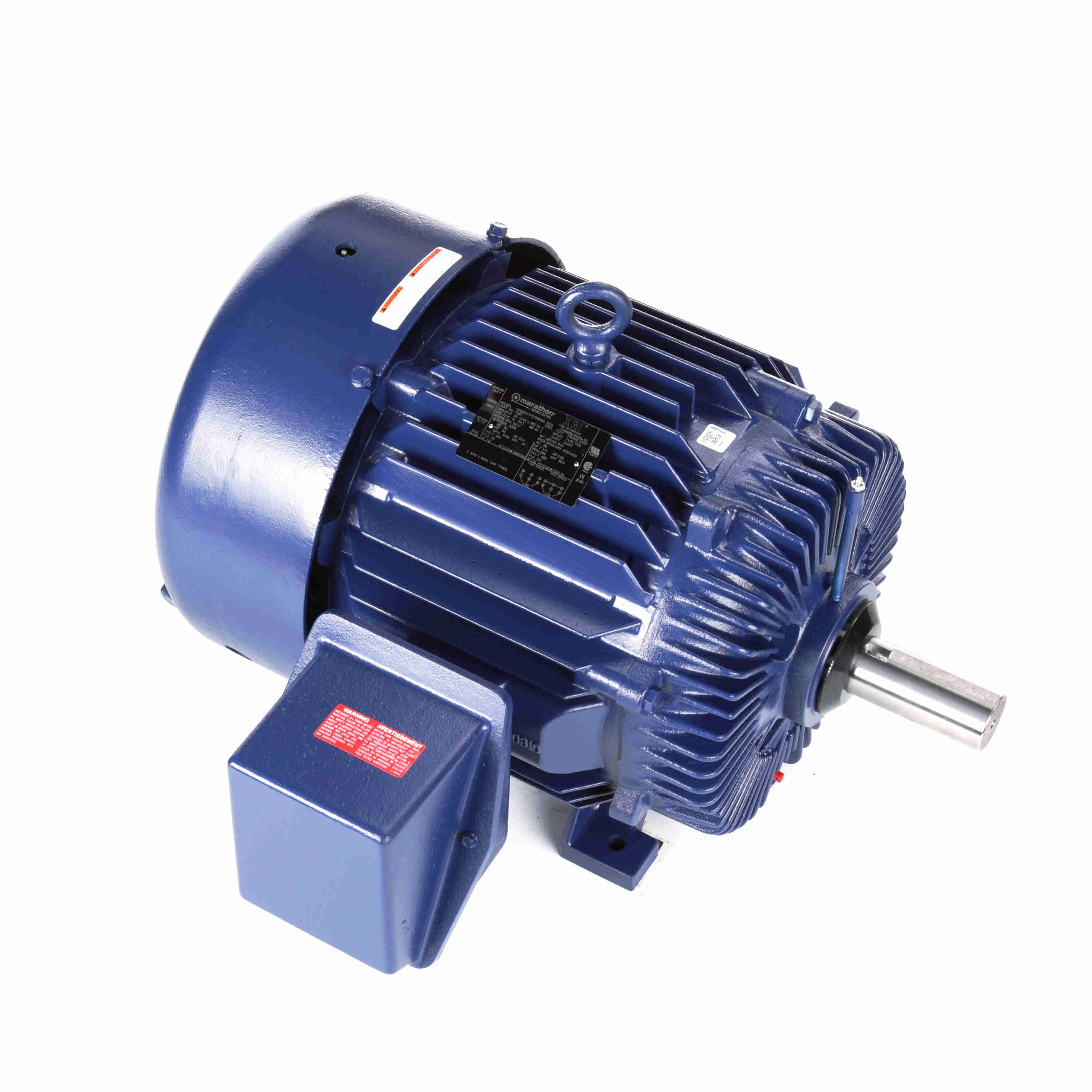

MARATHON MOTORS 324TTFS7290 Y387 / 324TTFS7290AN Multispeed Motor, 30 and 7.50 HP, 3 Phase, 60 Hz, 460V, 1800 and 1800 RPM
Get it by Monday, Jun 16
€7,200.58 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Cooling Tower Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Bearings | Ball |
| Body Dia. | 18 3/16" |
| Cc Number | CC003A |
| Color | Blue |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Dia. | 18 3/16" |
| Diameter | 18 3/16" |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Features | Extended Grease Tubes, Forsheda Seals On Both Ends, Regreasable, Shaft Slinger, T Drains Provided For Effective Drainage |
| Finish | Epoxy Coated |
| Frame | 324T |
| Frame Material | Cast Iron |
| Frequency | 60 Hz |
| Full Load Amps | 35/11.2A |
| Hp | 30 hp, 7 1/2 hp |
| Insulation Class | Class F |
| Length | 28 7/8" |
| Length Less Shaft | 21 3/16" |
| Motor Application | Cooling Tower |
| Motor Frame Material | Cast Iron |
| Motor Mounting Position | Horizontal/Vertical Shaft Up |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| No. Of Speeds | 2 |
| Nominal Efficiency | 91% |
| Number Of Speeds | 2 |
| Output Wattage | 22400 W |
| Overall Length | 28 7/8" |
| Phase | 3 |
| Rpm | 1785/888 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 2 1/8" |
| Shaft Length | 5 1/2" |
| Shaft Type | Keyed |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 460V AC |
| Ship weight (kg) | 252 |
| Ship height (cm) | 61.98 |
| Ship length (cm) | 96.22 |
| Ship width (cm) | 80.98 |
| HS code | 8501528040 |
| Country of Origin | US |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Nameplate RPM | Nominal Efficiency | Overall Length | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
284TTFNA7240 | 284T | 24/8.5 | 20, 5 | 21.375" | 1775/880 | 91.7 | 26.187" | 1.875" | €5,055.34 | |
 |
286TTFNA7260 | 286T | 31/11 | 25, 6-1/4 | 22.875" | 1775/880 | 91.7 | 27 11/16" | 1.875" | €5,899.27 | |
 |
365TTFS9230 | 365T | 74.5/25 | 60, 15 | 26.375" | 1780/885 | 92.4 | 32.5" | 2.375" | €16,562.32 |
