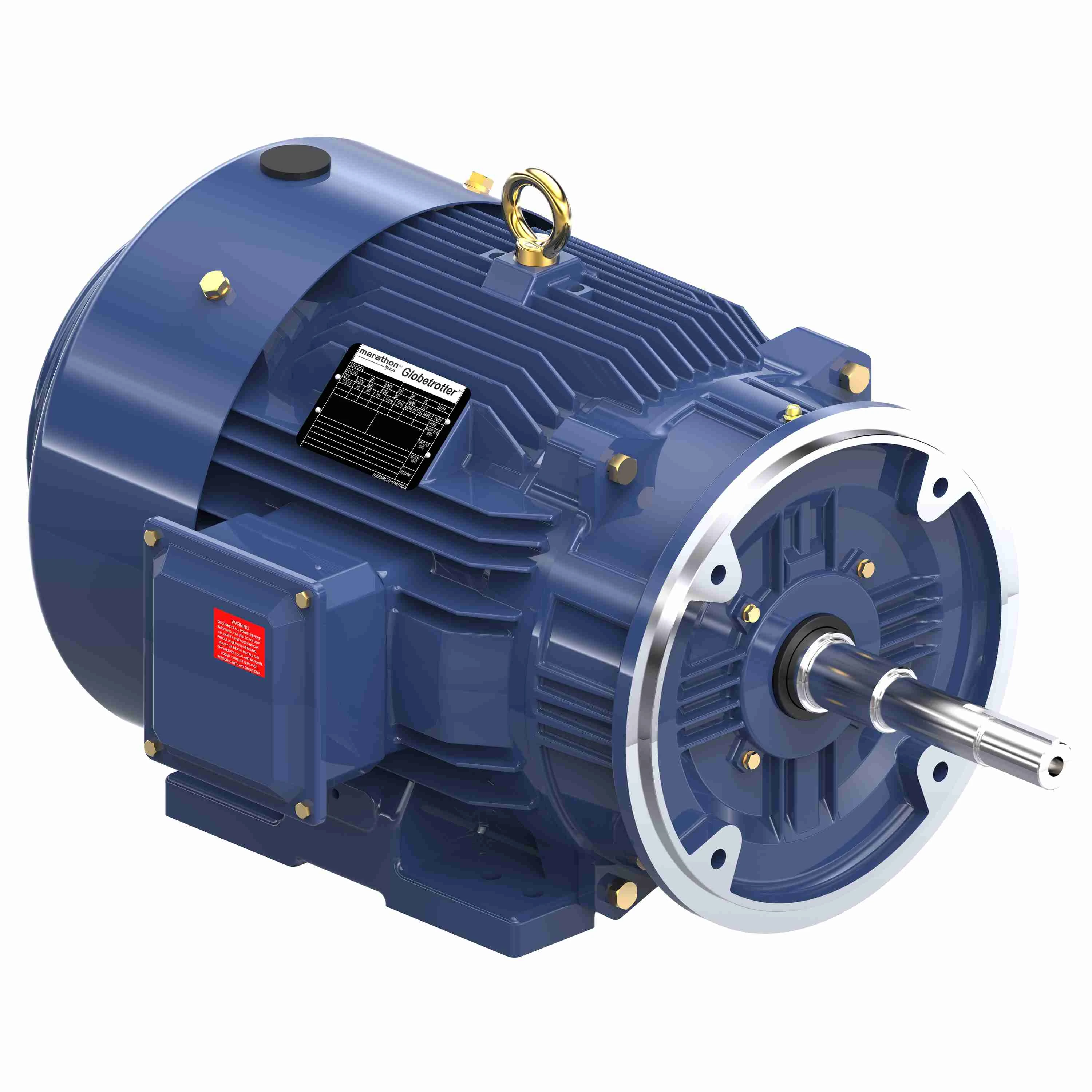

| Item | Close-Coupled Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 15 3/5" |
| Bolt Circle Dia. | 11" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 93.6% |
| Efficiency Group | Premium |
| Frame Material | Cast Iron |
| Frame Type | 286JP |
| Frequency | 50/60 Hz |
| Full Load Amps | 71/35.5A |
| Hp | 30 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 |
| Max. Ambient Temp. | 40°C |
| Motor Application | Close Coupled Pump |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed, Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1770 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Overall Height | 17 3/16" |
| Overall Length | 31 7/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 8 3/8" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Ship weight (kg) | 199.44 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 88.9 |
| Ship width (cm) | 55.88 |
| HS code | 8501528040 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Length Less Shaft | Nameplate RPM | Nominal Efficiency | Overall Length | RPM Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
213TTFBD6012 | 213JP | 17.4/8.7 | 7.5 | 16.375" | 3510 | 91% | 24 9/16" | 3001-3600 | €1,474.41 | |
 |
254TTFCD6037 | 254JP | 37.0/18.5 | 15 | 21.375" | 1770 | 92.4% | 29.5" | 1701-1800 | €2,472.43 | |
|
256TTFCD6012 | 256JP | 46.0/23.0 | 20 | 22.187 | 3545 | 91% | 30 11/16" | 3001-3600 | €2,790.92 | |
 |
256TTFCD6037 | 256JP | 48.5/24.2 | 20 | 22.187 | 1773 | 93% | 30 11/16" | 1701-1800 | €3,104.72 | |
|
284TTFCD6037 | 284JP | 61.0/30.5 | 25 | 25 11/16" | 1780 | 93.6% | 33 13/16" | 1701-1800 | €3,506.51 | |
|
286TTFCD6012 | 286JP | 68.0/34.0 | 30 | 26.875" | 3555 | 92.4% | 35" | 3001-3600 | €3,290.22 | |
 |
326TTFCD6037 | 326JP | 119.0/59.5 | 50 | 28.875" | 1780 | 94.5% | 37" | 1701-1800 | €5,382.42 |
