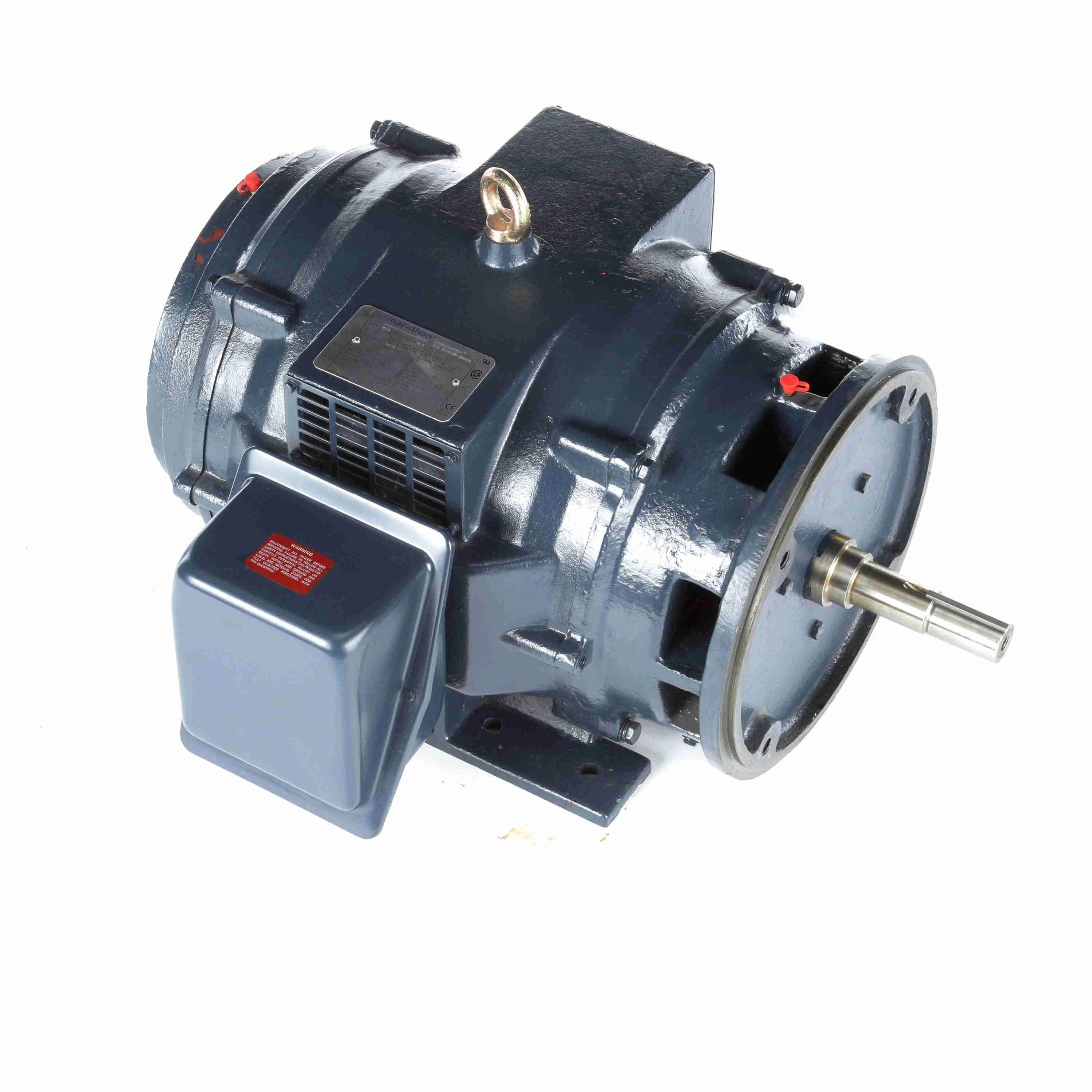

| Item | Close-Coupled Pump Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Bolt Circle Dia. | 11" |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1, F2 |
| Duty Cycle | Continuous |
| Efficiency | 91.7% |
| Frame | 284JM |
| Frame Material | Cast Iron |
| Full Load Amps | 71.5/35.5A |
| Hp | 30 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Inverter Rating | 10:1 Variable Torque, 2:1 Constant Torque |
| Motor Application | Close Coupled Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | JM Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Face/Base |
| Nameplate Rpm | 3560 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Overall Height | 15" |
| Overall Length | 26 9/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/4" |
| Shaft Length | 5 1/4" |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Ship weight (kg) | 160.74 |
| Ship height (cm) | 71.48 |
| Ship length (cm) | 80.7 |
| Ship width (cm) | 71.2 |
| HS code | 8501528040 |
| Country of Origin | MX |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
182TTDW17008 | Close-Coupled Pump Motor | €1,090.23 | |
 |
256TTDBD6085 | Close-Coupled Pump Motor | €2,676.20 | |
 |
286TTDBD6085 | Close-Coupled Pump Motor | €4,295.96 | |
 |
256TTDBD6037 | Close-Coupled Pump Motor | €2,668.12 | |
 |
284TTDBD6037 | Close-Coupled Pump Motor | €3,191.96 | |
 |
256TTDBD6012 | Close-Coupled Pump Motor | €2,527.68 | |
|
284TTDBD6032 | Close-Coupled Pump Motor | €3,191.25 |
