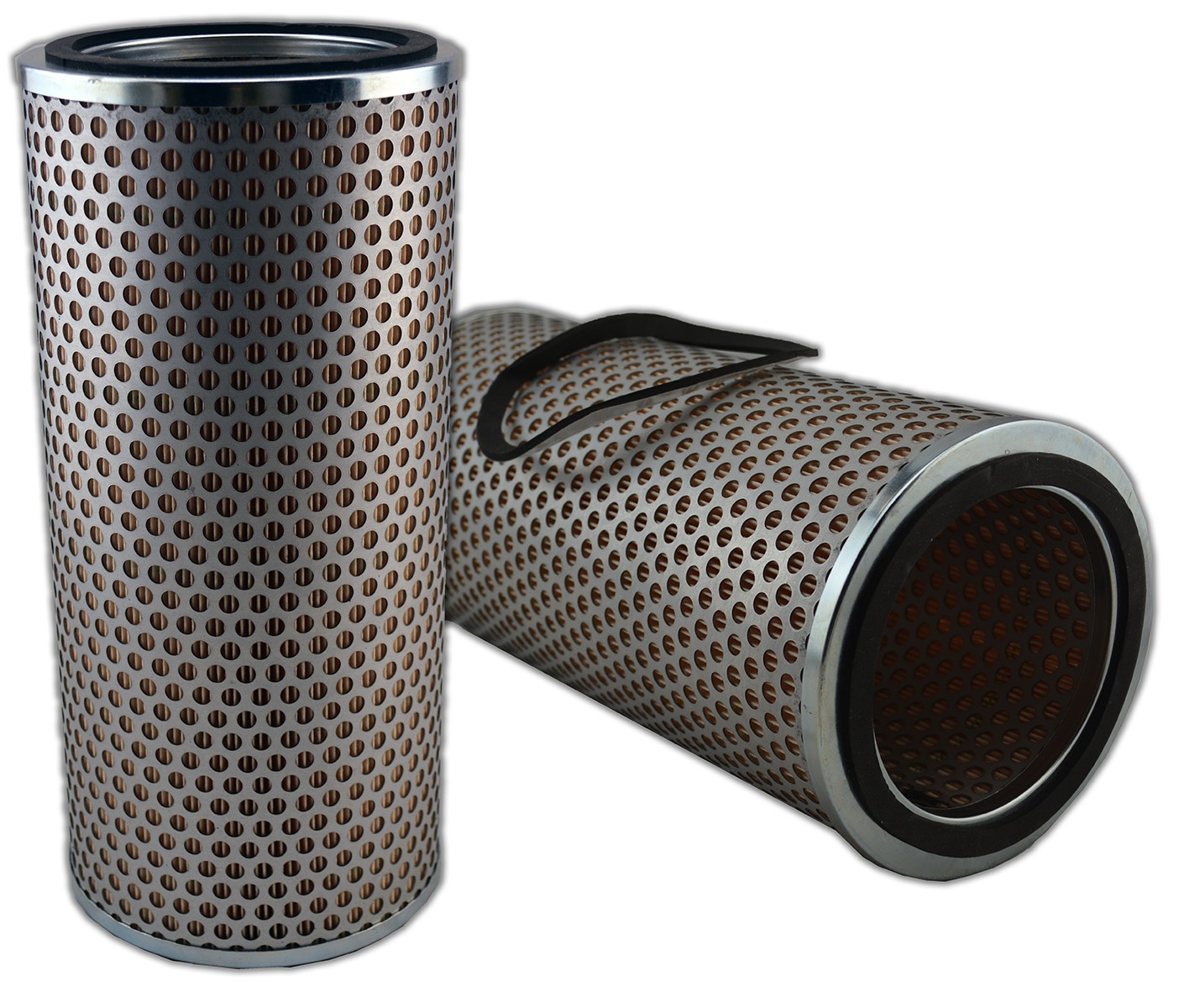

| Item | Hydraulic Filter |
| Bottom I.D. | 3.996" |
| Bottom O.D. | 5.61" |
| Capacity | 83.42 |
| Collapse Pressure | 51 |
| Cracking Pressure | 51 PSI |
| Filter Media | Cellulose |
| Filter Size | 2086 Sq. Inch |
| Flow | Outside-In |
| Flow Direction | Outside-In |
| Fluid Type | HH / HL / HM / HV |
| Gasket Material | Buna |
| Height | 12.12" |
| Max. Operating Temp. | 248 Deg. F |
| Microns | 3 |
| Min. Operating Temp. | -13 Deg.F |
| Seal Type | Buna |
| Top I.D. | 3.996" |
| Top O.D. | 5.61" |
| Product | Model | Filter Size | Top I.D. | Bottom I.D. | Height | Bottom O.D. | Top O.D. | Capacity | Collapse Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MF0004394 | 296 Sq. Inch | 1.496" | 1.496" | 9.52" | 2.52" | 2.52" | 11.85 | 145 | €43.83 | RFQ
|
|
MF0004687 | 2086 Sq. Inch | 3.996" | 3.996" | 12.12" | 5.61" | 5.61" | 83.42 | 51 | €74.55 | RFQ
|
|
MF0024211 | 296 Sq. Inch | 1.496" | 1.496" | 9.52 | 2.52" | 2.52" | 11.85 | - | €43.83 | RFQ
|
 |
MF0024259 | 741 Sq. Inch | 3.11" | 3.11" | 9.76 | 4.252" | 4.252" | 29.64 | - | €58.55 | RFQ
|
 |
MF0026130 | 296 Sq. Inch | 1.496" | 1.496" | 9.52 | 2.52" | 2.52" | 11.85 | - | €43.83 | RFQ
|
 |
MF0026203 | - | 1.693" | 1.693" | 8.89 | 2.756" | 2.756" | - | - | €43.36 | RFQ
|
 |
MF0028537 | 563 Sq. Inch | 1.732" | - | 9.17" | 3.661" | 3.661" | 22.52 | 73 | €37.19 | RFQ
|
