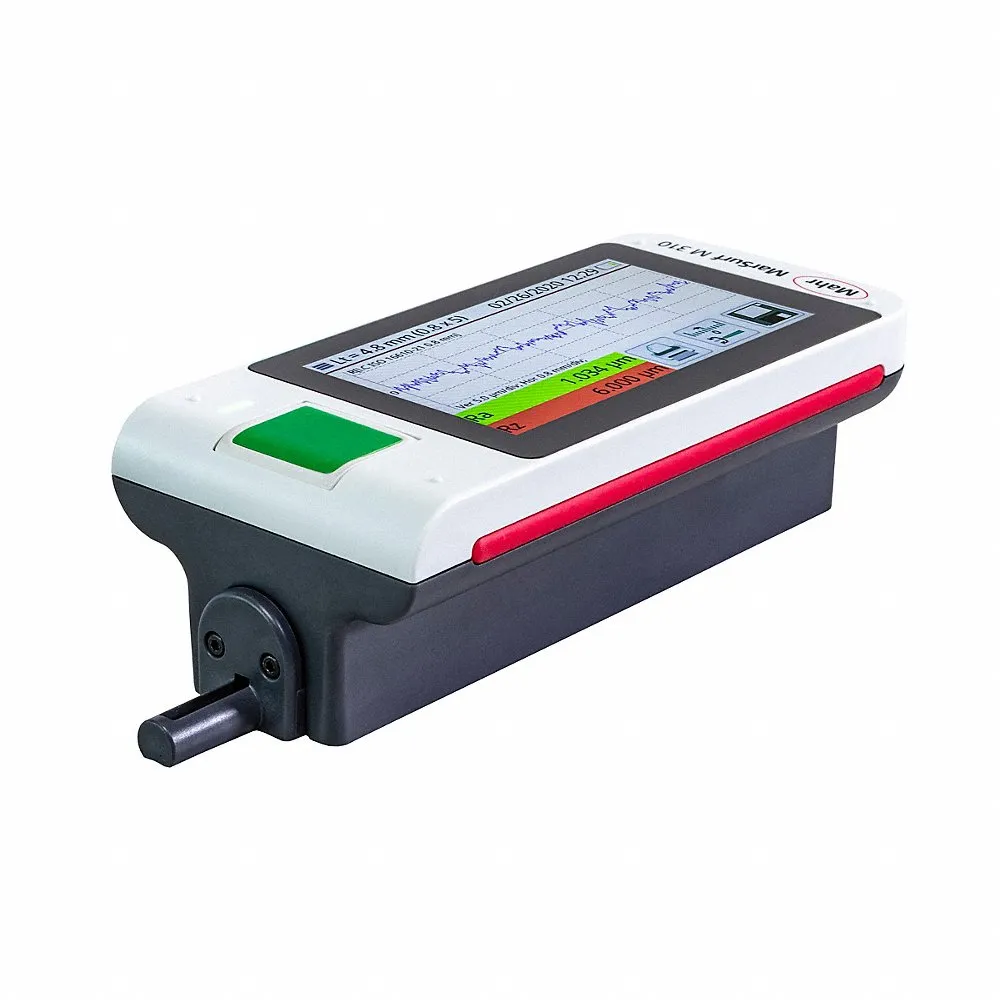

| Item | Surface Tester |
| Calibration Functions | Dynamic, RA, RZ, RSM |
| Compatible Data Output Cable | DK-U1 |
| Compatible Memory Card | Microsd |
| Data Export Formats | Txt, X3P, Csv, Pdf |
| Data Output Connection Type | USB |
| Detector Measuring Force | 0.75 mN |
| Digital Filter Type | Gaussian, Special, Lambda |
| Display Languages | Chinese, Czech, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Turkish |
| Display Size | 4.3" |
| Display Type | TFT Touch Screen |
| Drive Unit Principle | Inductive Skid |
| Features | Integrated, Removable Roughness Standard, Automatic Cutoff Selection, Print Directly To The Mobile Printer, Display And Print Mrk And Adk Curve |
| Ip Rating | IP40 |
| Measurement Range | 0.35 mm |
| Memory Storage Capacity | 3900 Profiles, 500, 000 Results, 1500 PDF Measuring Records |
| Number Of Parameters Measured | 32 |
| Power Supply | Rechargeable Lithium Ion Battery |
| Profile Resolution | 8 N-m |
| Data Output Type | Cable, Wireless With Transmitter |
| Display Screen Size | 4.3" |
| Measuring Range | 0.35 mm |
| Measuring Range (mm) | 0.35 mm |
| Parameters Measured | A1, A2, Ar, CF, CL, CR, Mr1, Mr2, R, R3z, Ra, Rk, Rmax, Rmr (tp (JIS, ASME) is equivalent to Rmr), Rp, RpA (ASME), RPc, Rpk, Rpm, Rpm (ASME), Rq, RS, RSk, RSm, Rt, Rvk, Rx, Rz, Rz (JIS), Rz (Ry (JIS) is equivalent to Rz), Vo |
| Product Type | Surface Tester |
| Tester Series | Series MarSurf M |
| Ship weight (kg) | 3.6 |
