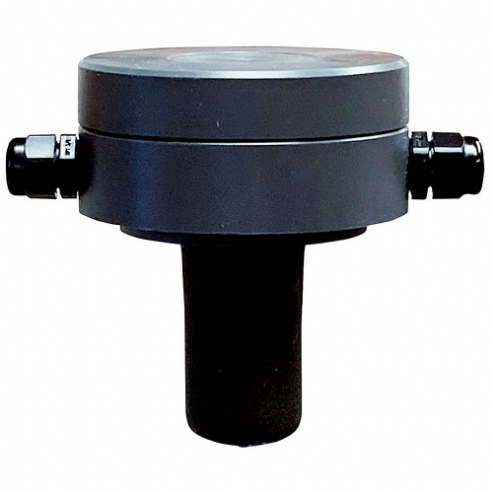

| Item | Noncontact Ultrasonic Level Sensor |
| Antenna Dia. | 1" |
| Beam Angle | 12° |
| Connection Size | 1" |
| Connection Type | NPT |
| Deadband | 4" |
| Dia. | 4" |
| Diameter | 4" |
| Enclosure Material | PVC |
| For Media Type | Film-Causing, Solid/Semi-Solid Liquid, Sticky Liquid |
| Material | PVC |
| Max. Operating Pressure | 72.5 psi |
| Media Type | Film-Causing, Solid/Semi-Solid Liquid, Sticky Liquid |
| Motor Enclosure Design | NEMA 6P |
| Operating Frequency | 148 kHz |
| Operating Temp. Range | +40°F to +140°F |
| Output Signal | 4-20 mA |
| Output Wire Configuration | 4 |
| Overall Dia. | 4" |
| Overall Length | 4.1" |
| Range | 6 ft. |
| Spatial Resolution | 0.03" |
| Tank Seal Material | Buna N |
| Voltage | 24V DC |
| Accuracy | +/-0.25% of Full Scale |
| Antenna Diameter | 1" |
| Connection | 1" NPT |
| Dead Band | 4" |
| Enclosure Rating | NEMA 6P |
| Max. Media Temperature | 140°F |
| Max. Voltage | 30V DC |
| Media Temp. Range | -40°F to 140°F |
| Media Temperature (minimum) | -40°F |
| Output Voltage Range | 4-20 mA |
| Overall Diameter | 4" |
| Standards | CE CERTIFIED |
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 10.41 |
| Ship width (cm) | 10.16 |
| HS code | 9026102080 |
| Country of Origin | CA |
| Product | Model | Price | |
|---|---|---|---|
 |
U3M-148 | €685.00 | |
|
U3M-148C485 | €1,419.11 |
