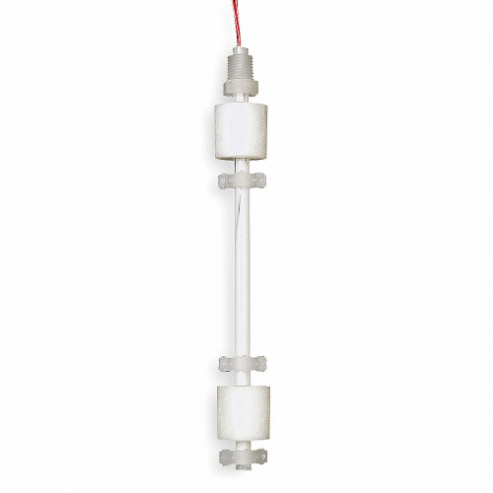

MADISON M8085 Multi-Level Liquid Switch, 1/4 Inch Npt Connection, 7.5 Inch Length, 1 Inch Float Length
Get it by Friday, Jun 13
€90.75 /unit
Add To Cart
Request a Quote
Payment
Get it by Friday, Jun 13
Payment
| Item | Multi-level Liquid Level Switch |
| Body Material | Polypropylene |
| Conduit Size | 1/4" |
| Contact Form | SPST |
| Finish | PTFE Coated |
| Float Dia. | 1" |
| Float Length | 1" |
| Float Material | Polypropylene |
| Float Specific Gravity | 0.8 |
| Float Switch Float Material | Polypropylene |
| Gauge | 22 ga. |
| Max. Current | 0.28A |
| Max. Pressure | 100 psi |
| Max. Voltage | 240V |
| Mounting | Vertical , Vertical Open Tank |
| Mounting Position | Vertical |
| Operating Temp. | 221°F |
| Overall Length | 7 1/2" |
| Stem Length | 6 3/4" |
| Stem Material | Polypropylene |
| Switch Action | Open On Rise |
| Switch Function | Open On Rise |
| Components Included | Float |
| Current Rating | 0.28A |
| Display Qty | 1 |
| Electrical Connection Type | Lead Wires |
| Features | 4 Wires |
| Float Diameter | 1" |
| Minimum Media Specific Gravity | 0.8 xg |
| Mounting Style | Open Tank Vertical |
| Operating Temperature - Maximum | 221°F |
| Product Type | Alternator Closed Liquid Level Switch |
| Proof Pressure | 100 psi |
| Standards | CE |
| Stem Thread Size | 1/4" NPT |
| Voltage Rating - Maximum | 240V AC |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 7.62 |
| Ship length (cm) | 19.05 |
| Ship width (cm) | 2.79 |
| HS code | 9032896060 |
| Country of Origin | US |
| Product | Model | Body Material | Conduit Size | Float Dia. | Float Material | Max. Pressure | Operating Temp. Range | Overall Length | Stem Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M5605 | 316 Stainless Steel | 1/2" | 2.13" | 316 SS | 200 psi | 392 Degrees F Max. | 8.25" | 7.25" | €197.81 |
