MADISON
MADISON M5600-PR Liquid Level Switch 1/4 Inch Npt Selectable 316 Stainless Steel | AE2NBV 4YM33

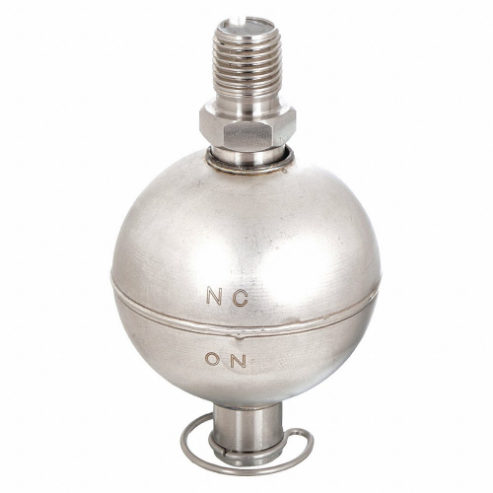

MADISON M5600-PR Liquid Level Switch 1/4 Inch Npt Selectable 316 Stainless Steel

In Stock
Item: AE2NBV Model: M5600-PRCross Ref: 4YM33
Check Availability
See variants (13)

Get it by May 24, Friday

Product available for flat shipping. Flat shipping price of €9,00 on transactions of value €99,00 or more and aggregate weight below 10 pounds.

Delivery Options:

Int. Economy (6-10 days)
  • Int. Express (5-7 days) ¥3,750
  • Ex-Works Pickup Free
  • Ex-works Pickup
€138.57 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemLiquid Level Switch
Body Material316 Stainless Steel
Conduit Size1/4"
Contact FormSPST
Electrical Connections22 ga. PTFE Coated 24" Leads
Float Dia.2"
Float Length2.00"
Float Material316 SS
Float Specific Gravity0.70
Height3.52"
Max. Current1A
Max. Pressure500 psi
Max. Voltage240
MountingVertical
Operating Temp. Range392 Degrees F Max.
Overall Length3.380"
Stem Length2.63"
Stem Material316 SS
Switch FunctionSelectable
Tank Connection Size1/4" NPT
VA Rating100
Width2.13"

Shipping Info:

Ship weight (kg) 0.11
Ship height (cm)5.59
Ship length (cm)8.13
Ship width (cm)9.14
HS code9026106000
Country of OriginUS

Product Variants

ProductModelMountingBody MaterialConduit SizeOperating Temp. RangeOverall LengthStem LengthStem MaterialVA RatingPrice
MADISON MS5010 Liquid Level Switch 3/8-24 Unf Selectable 316 Stainless Steel | AC4HVK 2ZY40 MS5010Horizontal316 Stainless Steel3/8-24"392 Degrees F Max.2.96"2.96"316 SS30€109.00
MADISON MS5917 Liquid Level Switch 1/4 Inch Npt Selectable 316 Stainless Steel | AC4HVL 2ZY41 MS5917Vertical316 Stainless Steel1/4"482 Degrees F Max.3.380"2.63"316 SS60€157.72
MADISON MS7000 Liquid Level Switch 1/8 Inch Npt Selectable Bunan | AC4HVM 2ZY42 MS7000VerticalPBT1/8"221 Degrees F Max.2.25"1.63"PBT30€35.14
MADISON MS8000 Liquid Level Switch 1/8 Inch Npt Selectable Pp | AC4HVN 2ZY43 MS8000VerticalPolypropylene1/8"221 Degrees F Max.2.25"1.63"Polypropylene30€29.01
MADISON MS8800 Liquid Level Switch 1/4 Inch Npt Selectable Pp | AC4HVP 2ZY44 MS8800VerticalPolypropylene1/4"221 Degrees F Max.3.380"2.63"Polypropylene60€94.95
MADISON MS9000 Liquid Level Switch 1/8 Inch Npt Selectable Kynar | AC4HVQ 2ZY45 MS9000VerticalKynar1/8"221 Degrees F Max.2.25"1.63"Kynar30€53.26
MADISON MSB5600 Liquid Level Switch Selectable 316 Stainless Steel | AC4HVR 2ZY47 MSB5600Vertical316 Stainless Steel-221 Degrees F Max.3.89"2.5"316 SS60€268.33
