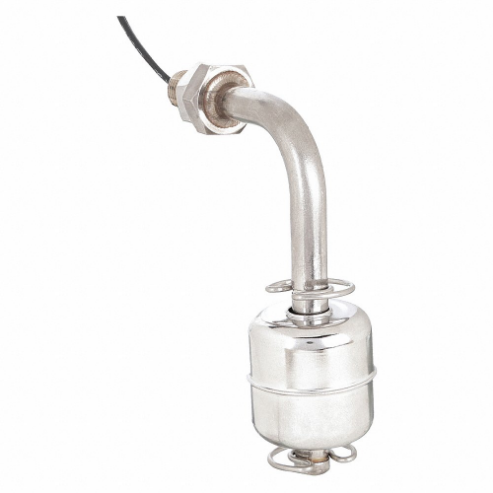

| Item | Liquid Level Switch |
| Body Material | Stainless Steel |
| Contact Form | SPST |
| Finish | PTFE Coated |
| Float Dia. | 1.13" |
| Float Length | 1.19" |
| Float Material | Stainless Steel |
| Float Specific Gravity | 0.7 |
| Float Switch Float Material | Stainless Steel |
| Gauge | 22 ga. |
| Grade | Grade 316 |
| Height | 2 24/25" |
| Max. Current | 0.28A |
| Max. Pressure | 300 psi |
| Max. Voltage | 240V |
| Mounting | Horizontal , Side |
| Mounting Position | Horizontal |
| Operating Temp. | 392°F |
| Overall Length | 2.96" |
| Stem Length | 2 24/25" |
| Stem Material | Stainless Steel |
| Switch Action | Select |
| Switch Function | Select |
| Tank Connection Type | UNF |
| Width | 3 3/5" |
| Components Included | Float |
| Current Rating | 0.28A |
| Display Qty | 1 |
| Electrical Connection Type | Lead Wires |
| Float Diameter | 1" |
| Minimum Media Specific Gravity | 0.91 xg |
| Operating Temperature - Maximum | 392°F |
| Overall Height | 2 24/25" |
| Overall Width | 3 3/5" |
| Product Type | Alternator Closed Liquid Level Switch |
| Proof Pressure | 300 psi |
| Series | M5010 Series |
| Standards | CE, CSA, NSF, UL LISTED |
| Stem Thread Size | 3/8"-24 UNF |
| Voltage Rating - Maximum | 120V DC/240V AC |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 7.52 |
| Ship length (cm) | 7.52 |
| Ship width (cm) | 9.14 |
| HS code | 9026106000 |
| Country of Origin | US |
| Product | Model | Body Material | Conduit Size | Electrical Connections | Float Dia. | Float Material | Height | Max. Pressure | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MS5010 | 316 Stainless Steel | 3/8-24" | 22 ga. PTFE Coated 24" Leads | 1.13" | 316 SS | 1.61" | 300 psi | Horizontal | €143.13 | |
 |
MS5917 | 316 Stainless Steel | 1/4" | 18 ga.PTFE Coated 24" Leads | 2.13" | 316 SS | 3.38" | 200 psi | Vertical | €109.63 | |
 |
MS7000 | PBT | 1/8" | 22 ga. PTFE Coated 24" Leads | 1" | Buna N | 2.25" | 150 psi | Vertical | €30.20 | |
 |
MS8000 | Polypropylene | 1/8" | 22 ga. PTFE Coated 24" Leads | 1" | Polypropylene | 2.25" | 100 psi | Vertical | €28.31 | |
 |
MS8800 | Polypropylene | 1/4" | 22 ga. MTW Coated 24" Leads | 1.5" | Polypropylene | 3.38" | 100 psi | Vertical | €121.53 | |
 |
MS9000 | Kynar | 1/8" | 22 ga. PTFE Coated 24" Leads | 1" | Kynar | 2.25" | 15 psi | Vertical | €41.99 | |
 |
MSB5600 | 316 Stainless Steel | - | 1.8m PTFE Cable | 2.13" | 316 SS | 3.64" | 85 psi | Vertical | €203.99 |
