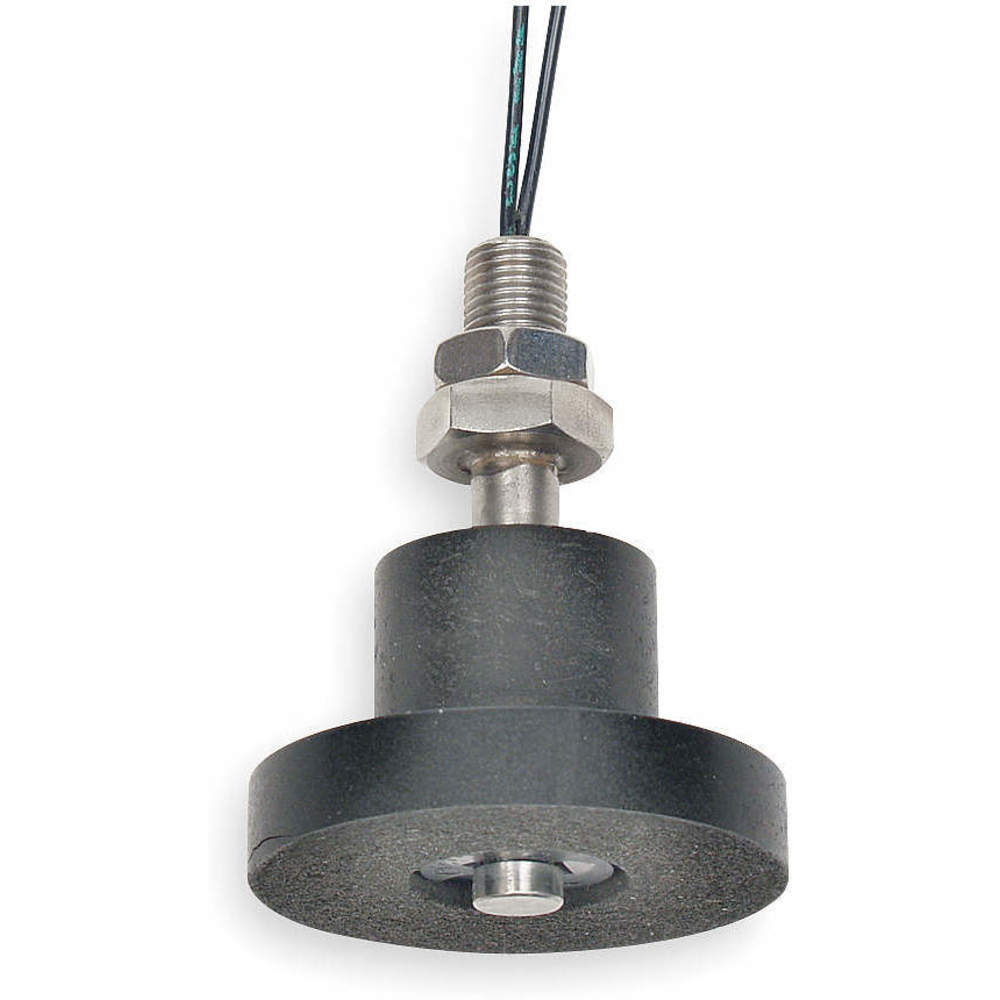

| Item | Ultra Low Level Liquid Switch |
| Body Material | Stainless Steel |
| Conduit Size | 1/8" |
| Contact Form | SPST |
| Float Dia. | 1 22/25" |
| Float Length | 1 4/25" |
| Float Material | Buna N |
| Float Specific Gravity | 0.44 |
| Grade | 304 |
| Height | 2 1/4" |
| Max. Current | 0.28A |
| Max. Pressure | 25 psi |
| Max. Voltage | 240V |
| Mounting | Vertical , Vertical Open Tank |
| Mounting Position | Vertical |
| Operating Temp. | 221°F |
| Overall Length | 2 1/4" |
| Stem Length | 1.63" |
| Stem Material | Stainless Steel |
| Switch Action | Close On Rise |
| Switch Function | Close On Rise |
| Components Included | Float |
| Current Rating | 0.28A |
| Display Qty | 1 |
| Electrical Connection Type | Lead Wires |
| Features | For High or Low Level Float Switch Liquid Control |
| Float Diameter | 1" |
| Minimum Media Specific Gravity | 0.56 xg |
| Mounting Style | Open Tank Vertical |
| Operating Temperature - Maximum | 221°F |
| Overall Height | 2 1/4" |
| Product Type | Closed Liquid Level Switch |
| Proof Pressure | 150 psi |
| Series | M4400 Series |
| Standards | CE, CSA, UL LISTED |
| Stem Thread Size | 1/8" NPT |
| Voltage Rating - Maximum | 120V DC/240V AC |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 5.72 |
| Ship width (cm) | 4.7 |
| HS code | 9032896060 |
| Country of Origin | US |
| Product | Model | Body Material | Electrical Connections | Float Material | Stem Material | Price | |
|---|---|---|---|---|---|---|---|
 |
M9000-ULL-NO | Kynar | 22 ga. PTFE Coated 24" Leads | Kynar | Kynar | €105.49 | |
 |
M7000-ULL-NO | PBT | 22 ga. PTFE Coated 24" Leads | Buna N | PBT | €125.57 | |
 |
M4500-ULL-NO | Brass | 22 ga. PTFE Coated 24" Leads | Buna N | Brass | €105.36 | |
 |
M4400-PBT-ULL-NO | 316 Stainless Steel | 22 ga. PTFE Coated 24" Leads | PBT | 316 SS | €80.43 | |
|
M7000-PBT-ULL-NO | PBT | 22 ga. PTFE Coated 24" Leads | PBT | PBT | €82.41 | |
 |
M8000-ULL-NO | Polypropylene | 22 ga. MTW Coated 24" Leads | Polypropylene | Polypropylene | €54.65 | |
 |
M8020-ULL-NO | 316 Stainless Steel | 22 ga. PTFE Coated 24" Leads | Polypropylene | 316 SS | €102.11 |
