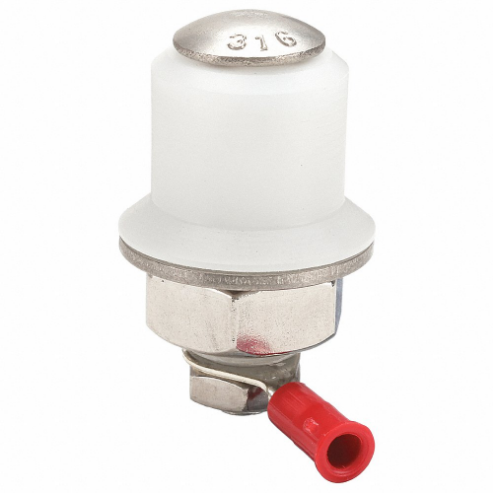

MADISON M3850 Conductivity Switch Bulkhead Connection
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Float Switch |
| Accuracy | Not Applicable |
| Connection Size | 1/2" |
| Connection Type | Bulkhead |
| Cord Length | Cordless |
| Enclosure Rating | Not Rated |
| Float Dia. | 3/4" |
| Float Diameter | 3/4" |
| Float Length | 7/8" |
| Float Material | Polypropylene |
| For Media Type | Industrial Slurries, Semi-Solid Liquids, Wastewater, Nonhazardous Liquids |
| Height | 2" |
| Housing Material | Stainless Steel |
| Length | 1 1/2" |
| Max. Operating Pressure | 30 psi |
| Max. Pressure | 30 psi |
| Max. Temp. | 212°F |
| Media Type | Industrial Slurries, Nonhazardous Liquids, Semi-Solid Liquids, Wastewater |
| Mounting Orientation | Horizontal |
| Mounts | Nut, Washer |
| Nameplate Voltage | Not Applicable |
| No. Of Digital Outputs | 1 |
| Number Of Outputs - Analog | Not Applicable |
| Number Of Outputs - Digital | 1 |
| Operation | Conductivity Probe |
| Output Voltage Range | Not Applicable |
| Output Wire Configuration | Not Applicable |
| Overall Length | 1.63" |
| Probe Material | Stainless Steel |
| Probe Type | Rod |
| Range | 0.9" |
| Stem Length | 7/8" |
| Stem Material | Stainless Steel |
| Thread Type | Fine |
| Voltage | 9V DC |
| Width | 1" |
| Wire Gauge | 18 AWG to 22 AWG |
| Body Material | 316 Stainless Steel |
| Max. Media Temperature | 212°F |
| Number Of Digital Outputs | 1 |
| Process Connection | 1/2" UNF |
| Product Type | Conductivity Sensor |
| Standards | None |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 3.81 |
| Ship width (cm) | 2.54 |
| HS code | 9026102080 |
| Country of Origin | US |
| Product | Model | Connection | Height | Length | Max. Temp. | Operation | Overall Length | Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
M3784-110 | 1" NPT | 28.15" | 28.15" | 212 F | Conductivity Switch | 24" | 2.25" | €395.67 |
