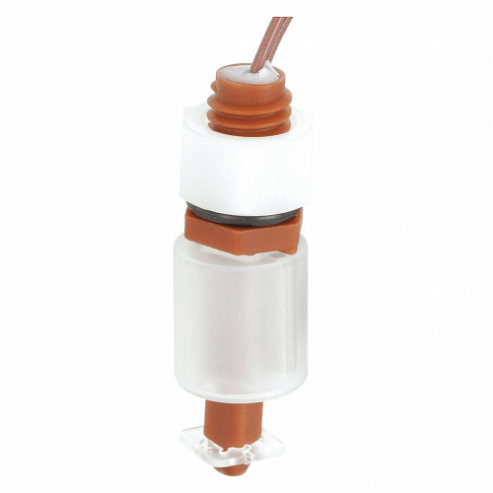

| Item | Liquid Level Switch |
| Body Material | Polypropylene |
| Contact Form | SPST |
| Finish | PTFE Coated |
| Float Dia. | 0.58" |
| Float Length | 0.63" |
| Float Material | Polypropylene |
| Float Specific Gravity | 0.7 |
| Float Switch Float Material | Polypropylene |
| Gauge | 22 ga. |
| Height | 1.85" |
| Max. Current | 0.12A |
| Max. Pressure | 50 psi |
| Max. Voltage | 240V |
| Mounting | Vertical , Vertical Open Tank |
| Mounting Position | Vertical |
| Operating Temp. | 221°F |
| Overall Length | 1.85" |
| Stem Length | 1 1/4" |
| Stem Material | Polypropylene |
| Switch Action | Open On Rise |
| Switch Function | Open On Rise |
| Tank Connection Type | UNC |
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 4.7 |
| Ship length (cm) | 4.7 |
| Ship width (cm) | 2.24 |
| HS code | 9032896060 |
| Country of Origin | US |
| Product | Model | Body Material | Conduit Size | Electrical Connections | Float Dia. | Float Material | Height | Max. Pressure | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M3782 | Brass/PBT | - | 20 ft. 22 AWG, HALAR Jacketed 2-conductor Cable With Watertight Connector | 1" | Buna N | 4.06" | 50 psi | Vertical | €165.38 | |
 |
M3827-2 | 316 Stainless Steel | 1/2" | 22 ga. PTFE Coated 24" Leads | 1.54" | 316 SS | - | 50 psi | Horizontal | €135.98 | |
 |
M3827-3 | 316 Stainless Steel | 1/8" | 22 ga. PTFE Coated 24" Leads | 1.54" | 316 SS | - | 50 psi | Horizontal | €174.99 | |
 |
M8000-C | Polypropylene and PVC | 3/4" | 22 ga. MTW Coated 24" Leads | 0.875" | Polypropylene | 2.25" | 50 psi | Vertical | €33.35 | |
 |
M3326-NPT | Polypropylene | 1/8" | 22 ga. PTFE Coated 24" Leads | 0.58" | Polypropylene | 1.68" | 50 psi | Vertical | €47.19 | |
 |
M4035 | Stainless Steel | 1/8" | 22 ga. PTFE Coated 24" Leads | 0.78" | Polypropylene | 1.44" | 100 psi | Vertical | €62.77 | |
 |
M8800-PR | Polypropylene | 1/4" | 22 ga. MTW Coated 24" Leads | 1.5" | Polypropylene | 3.38" | 100 psi | Vertical | €116.46 |
