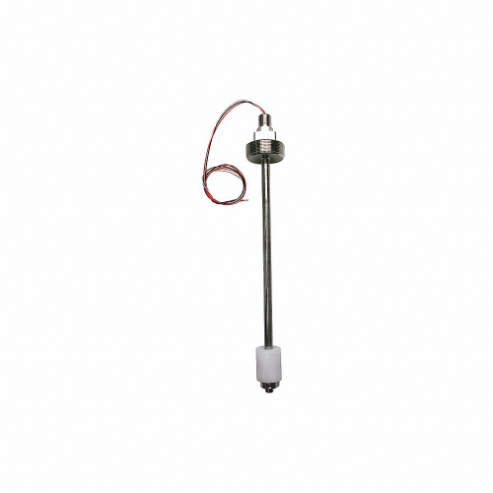

| Item | Industrial Continuous Level Transmitter |
| Accuracy | -0.25" to +0.25" |
| Connection Size | 1 1/2" |
| Enclosure Rating | Not Rated |
| Float Dia. | 1 1/2" |
| Float Diameter | 1 1/2" |
| Float Length | 2" |
| Float Material | Polypropylene |
| For Media Type | Chemicals, Nonhazardous Liquids |
| Housing Material | Stainless Steel |
| Max. Media Temp. | 221°F |
| Max. Operating Pressure | 100 psi |
| Media Type | Chemicals, Nonhazardous Liquids |
| Mounting | Vertical |
| Mounting Direction | Vertical |
| Mounting Orientation | Vertical |
| Nameplate Voltage | 12/30V DC |
| No. Of Analog Outputs | 1 |
| Number Of Outputs - Analog | 1 |
| Output Voltage Range | 4-20 mA |
| Output Wire Configuration | 2-Wire |
| Overall Length | 20.9" |
| Probe Material | Stainless Steel |
| Probe Style | Immersion |
| Probe Type | Rod |
| Process Connection Size | 1 1/2" |
| Process Connection Type | NPT |
| Range | 16" |
| Specific Gravity | 0.7 |
| Stem Length | 18 5/8" |
| Stem Material | Stainless Steel |
| Wire Size | 22 AWG |
| Body Material | 316 Stainless Steel |
| Connection Type | NPT |
| Max. Media Temperature | 221°F |
| Max. Specific Gravity | 0.7 |
| Number Of Analog Outputs | 1 |
| Overall Length | 20.9" |
| Process Connection | 1 1/2" NPT |
| Product Type | Float Level Sensor |
| Standards | CE, CULUS |
| Ship weight (kg) | 0.65 |
| Ship length (cm) | 53.09 |
| Ship width (cm) | 5.38 |
| Country of Origin | US |
