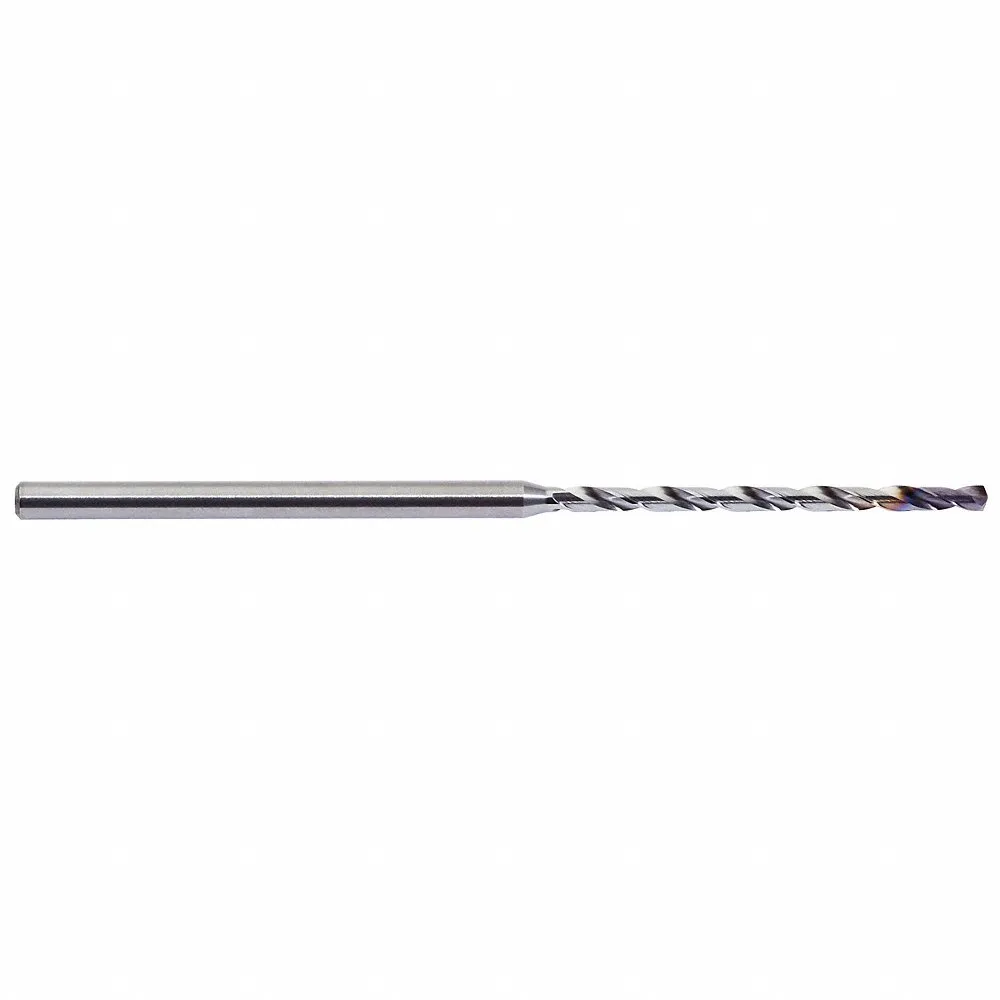

| Item | Micro Drill Bit |
| Circuit Board Drill | No |
| Coolant Fed | Coolant Through |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.063 |
| Depth X Dia. Ratio | 12xd |
| Drill Bit Point Angle | 138° |
| Drill Bit Size | 1.6 mm |
| Drill Diameter Tolerance | -0.01 mm to 0 mm |
| Finish | Aluminum Titanium Nitride |
| Flute Length | 26 mm |
| Flute Type | Helical |
| Grade | High Performance |
| Helix Angle | 30° |
| Material | Carbide |
| Max. Drilling Depth | 23.6 mm |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 70 mm |
| Primary Material Application | Cast Iron, Hardened Steel, Special Alloy, Stainless Steel, Steel |
| Secondary Material Application | Alloy Steel, Cast Iron, Die Steel, Hardened Steel, Stainless Steel, Titanium |
| Shank Dia. | 3 mm |
| Shank Type | Straight |
| Spiral Direction | Right Hand |
| System Of Measurement | Metric |
| Web Construction | Web Thinned |
| Web Thinning | Web Thinned |
| Depth:dia. Ratio | 12xD |
| Finish - Machining | AlTiN |
| Material - Machining | Carbide |
| Material Grade - Machining | High Performance |
| Maximum Drilling Depth | 23.6 mm |
| Measurement System | Metric |
| Primary Material Application Iso Code | H, K, M, P, S |
| Secondary Material Application Iso Code | H, K, M, P, S |
| Shank Length | 1.7323" |
| Shank Type - Machining | Straight |
| Standards | ISO 9001:2015 CERTIFIED |
| Model | Price | |
|---|---|---|
| MXDCLM0100A | €128.60 | |
| MXDCLM0110A | €128.60 | |
| MXDCLM0120A | €128.60 | |
| MXDCLM0130A | €128.60 | |
| MXDCLM0140A | €128.60 | |
| MXDCLM0150A | €128.60 | |
| MXDCLM0170A | €128.60 |
