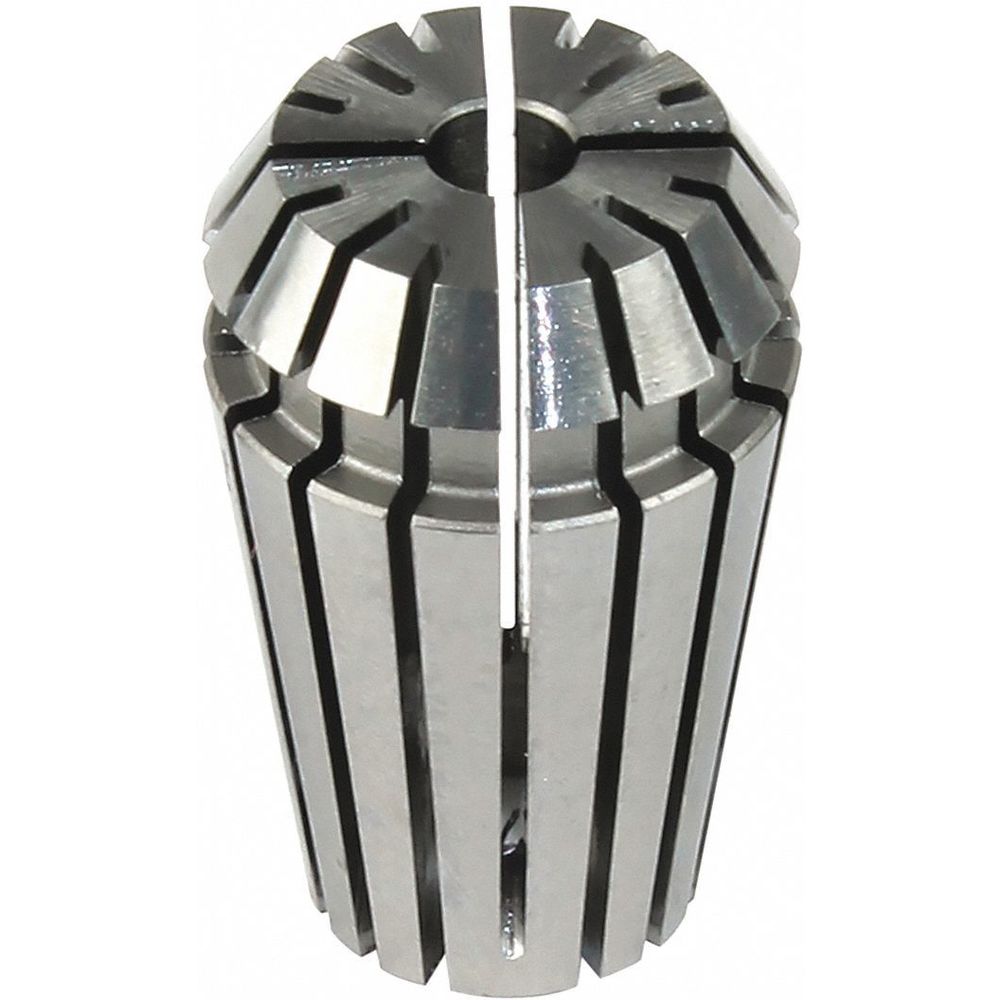

LYNDEX-NIKKEN E11-118 Collet, 3.00 mm Size
€51.07 /unit
Request a Quote
Payment
Payment
Item | Collet |
Collet Series | ER11 |
Coolant Fed | Non-Coolant Through |
Coolant Through | No |
Face Shape | Round |
For Use With | Collet Chucks |
Head Dia. | 0.46" |
Max. Bore Dia. | 0.307" |
Number Of Slots | 6 |
Overall Length | 0.709" |
Range | 2.5 mm to 3 mm |
Size | 3 mm |
System Of Measurement | Metric |
Bore Shape | Round |
Collapse Range | 2.5 mm to 3 mm |
Collet Size | 3 mm |
Collet Type | Standard |
Material | Chromium-Molybdenum |
Measurement System | Metric |
Outside Diameter - Maximum | 0.46" |
Standards | DIN 6499 |
Taper Angle | 16° |
Ship weight (kg) | 0.01 |
