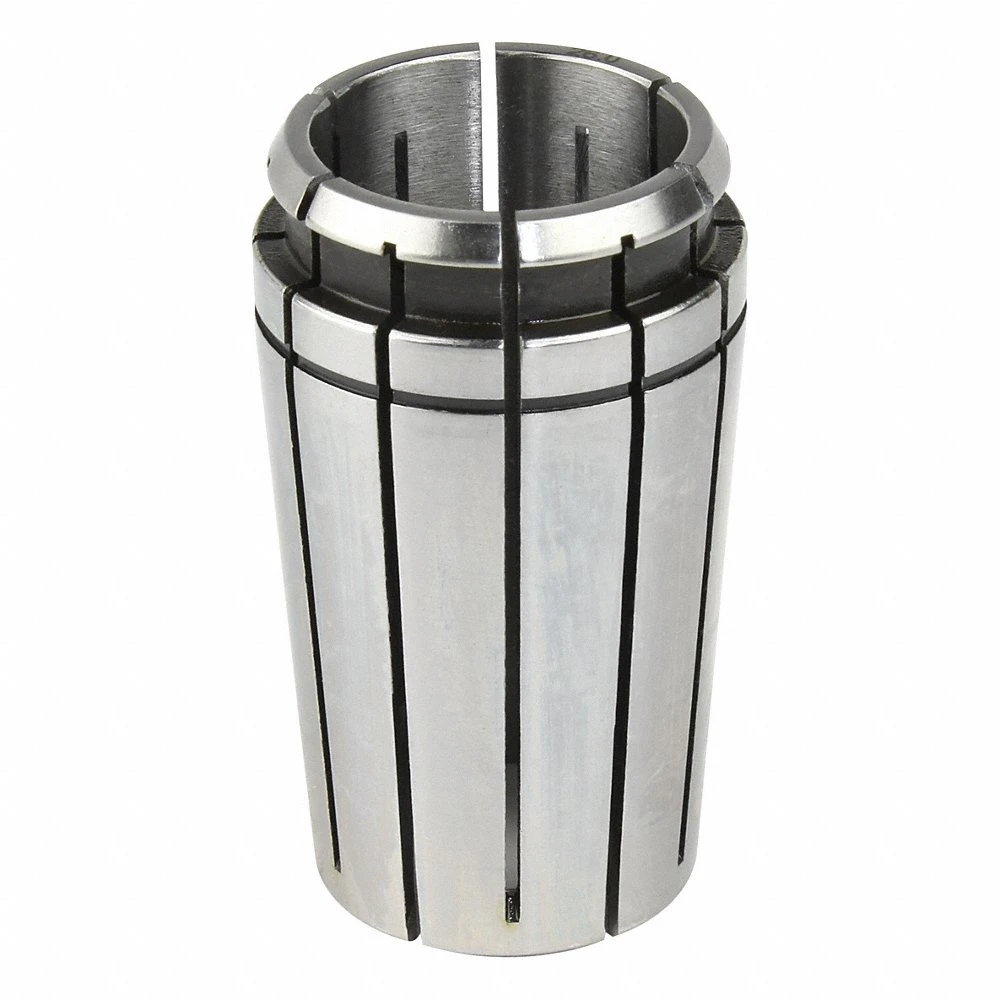

| Item | Collet |
| Collet Type | TG |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Face Shape | Round |
| For Use With | TG Collet Chucks |
| Head Dia. | 1.278" |
| Max. Body Dia. | 1/2" |
| Max. Bore Dia. | 1.121" |
| Number Of Slots | 4 |
| Overall Length | 2.386" |
| System Of Measurement | Imperial |
| Taper Angle | 8° |
| Bore Shape | Round |
| Collapse Range | 0.4844" to 0.5" |
| Collet Series | TG100 |
| Collet Size | 1/2" |
| Finish | Chrome Plated |
| Material | Low-Carbon Steel |
| Measurement System | Inch |
| Outside Diameter - Maximum | 1.278" |
| Standards | AT3 |
| T.i.r. Tolerance | 0.0002" |
| Torque - Maximum | 75 lbs.-ft. |
| Ship weight (kg) | 0.26 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
