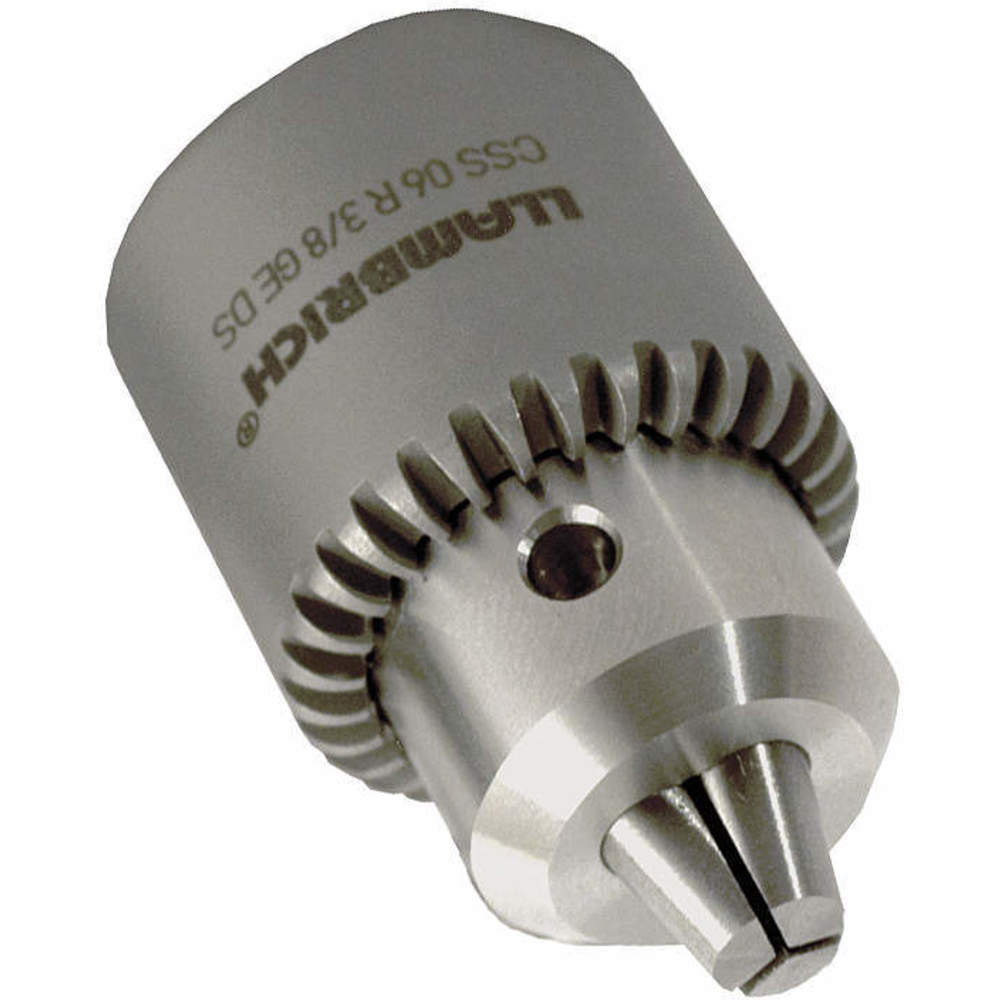

| Item | Drill Chuck |
| Accessory Type | Inox |
| Bearing Type | Ball |
| Chuck Diameter | 1.118" |
| Chuck Type | Keyed |
| Closed Length | 1.98" |
| Construction | Stainless Steel |
| Key Number | K1M |
| Material | Stainless Steel |
| Max. Capacity | 0.291" |
| Open Length | 1.575" |
| Drill Bit Shank Capacity (decimal Equivalent) | 0.0156 to 0.2969 |
| Drill Bit Shank Capacity (fractional Inch) | 1/64" to 19/64" |
| Features | Bead Blasted with Glass Balls and have Passivation Treatment by an Electro Polishing Technique, Identified with special Laser Markings to hold up to the Autoclave Process, Milled to ensure Non Slip Hand Tightening free of Sharp Edges |
| For Max Drill Bit Shank Size | 19/64" |
| For Min Drill Bit Shank Size | 1/64" |
| Key | Chuck Key Included |
| Keying | Keyed |
| Mounting Size | 3/8"-24 |
| Mounting Type | Internal Thread |
| Product Type | Drill Chuck |
| Series | CSS Series |
| Turn Direction | CW/CCW |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 15.24 |
| Ship width (cm) | 15.24 |
| HS code | 8466100175 |
| Country of Origin | ES |
| Product | Model | Capacity Max. | Closed Length | Key Number | Mounting Size | Mounting Type | Price | |
|---|---|---|---|---|---|---|---|---|
 |
CSS-04 R-5/16 GE | 0.156" | 1.366" | K0M | 5/16-24 | R-5/16 | €358.23 | |
|
CSS-06 R-5/16 GE-DS | 0.291" | 1.98" | K1M | 5/16-24 | R-5/16 | €369.95 |
