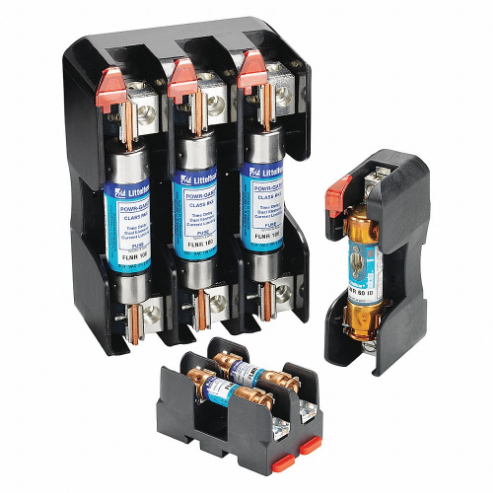

| Item | Fuse Block |
| Amp Range | 0-30A |
| Body Material | Thermoplastic |
| Connector Type | Box Lug |
| Features | Spacing Saving Design, Universal Mounting Holes for Easy Replacement |
| Fits Fuse Type | Industrial |
| For Fuse Size | 2" L x 9/16" dia. |
| Fuse Block Design | Open |
| Fuse Block Style | Rejection |
| Fuse Ul Class | Class R |
| Height | 1.58" |
| Length | 3.01" |
| Mounting Style | Bolt-Down, DIN Rail |
| Number Of Poles | 1 |
| Spring Reinforced Clip | Yes |
| Standards | CSA CERTIFIED, ROHS, UL LISTED |
| Visual Indication | Nonindicating |
| Voltage Rating | 250V AC/DC |
| Width | 1.13" |
| Wire Range | 14 AWG to 6 AWG |
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 4.01 |
| Ship length (cm) | 7.65 |
| Ship width (cm) | 2.87 |
| Country of Origin | CN |
| Model | Price | |
|---|---|---|
| LFR25030-1P | €11.91 | |
| LFR25030-1S | €17.36 | |
| LFR250302C | €50.61 | |
| LFR25030-2P | €34.71 | |
| LFR25030-2S | €28.65 | |
| LFR250303C | €37.83 | |
| LFR25030-3P | €28.50 |
