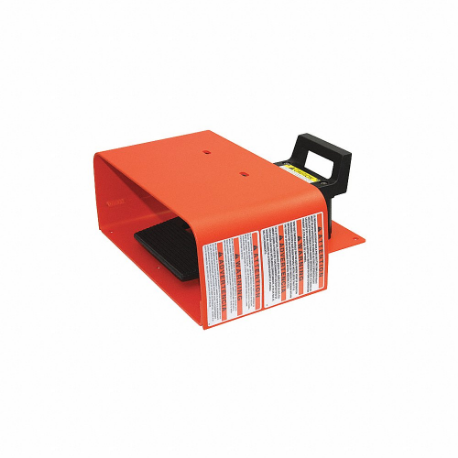

| Item | Heavy Duty Foot Switch |
| Action Type | Momentary |
| Amps Rating | 15/10A |
| Color | Black, Orange |
| Contact Form | SPDT |
| Cord Type | No Cord |
| Depth | 4 3/8" |
| Features | Foot Guard |
| Hp | 1 hp, 3/4 hp |
| Ip Rating | IP68 |
| Length | 10 1/4" |
| Length (straight Wireway) | 10 1/4" |
| Material | Aluminum |
| Nema Rating | NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 6, NEMA 6P, NEMA 7D, NEMA 9F |
| Voltage Rating | 125V/250V AC/28V DC |
| Width | 11" |
| Ac Contact Rating | 10A @ 250V, 15A @ 125V |
| Dc Contact Rating | 3 A @ 28 V |
| Foot Guard Included | Guard Included |
| Hazardous Location Specification | Class I, Div 1, Group D, Class II, Div 1, Group F, G |
| Horsepower | 0.75 hp @ 125V AC, 1 hp @ 250V AC |
| Includes Potentiometer | No Potentiometer Included |
| Manufacturer Warranty Length | 1 yr. |
| Moisture Resistance | Waterproof/Submersible |
| Nema Enclosure Rating | NEMA 2, NEMA 3, NEMA 4, NEMA 6, NEMA 6P, NEMA 7, NEMA 9, NEMA 13 |
| Number Of Pedals | 1 |
| Overall Depth | 10.25" |
| Overall Height | 4.38" |
| Overall Width | 11" |
| Power Source | Electrically Corded |
| Resistance Properties | Explosion Proof |
| Series | Explosion Proof 600 |
| Standards | CULUS, ROHS |
| Switch Action | Momentary |
| Termination Connection Type | 3/4"-14 NPT Conduit Hole |
| Ship weight (kg) | 4.28 |
| Ship height (cm) | 11.13 |
| Ship length (cm) | 26.04 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
