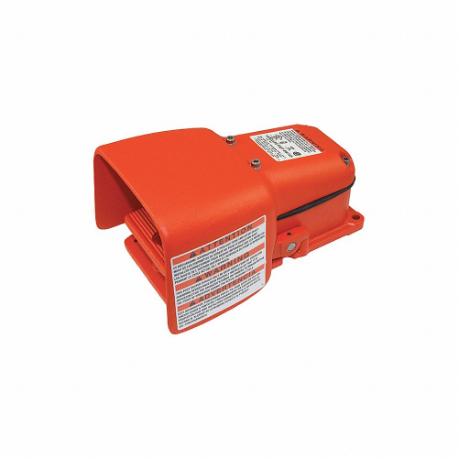

| Item | Heavy Duty Foot Switch |
| Action Type | Momentary |
| Amps Rating | 15A |
| Cord Type | No Cord |
| Depth | 4 3/8" |
| Features | Foot Guard |
| Housing Colors | Orange |
| Hp | 1 hp, 1/2 hp |
| Length | 9" |
| Material | Cast Iron |
| Switch Connections | Screw Terminal |
| Voltage Rating | 125/250V AC |
| Width | 5 7/8" |
| Ac Contact Rating | 15A @ 125 to 250V |
| Cable Entries | Threaded Entry |
| Cable Entry Size | 3/4"-14 |
| Cable Entry Type | NPT |
| Contact Configuration | Form Z |
| Contact Form | SPDT DB |
| Contact Form | SPDT-DB |
| Display Qty | 1 |
| Electrical Ratings | 15A, 125-250V AC, 1/2 hp, 125V AC, 1 hp 250V AC, Heavy Pilot Duty 250V AC Max. |
| Foot Guard Included | Guard Included |
| Hazardous Location Specification | Not Rated |
| Horsepower | 1/2 hp @ 125V AC, 1 hp @ 250V AC |
| Housing Material | Cast Iron |
| Includes | Ground Screw, Neoprene Cover Gasket, O Ring |
| Includes Potentiometer | No Potentiometer Included |
| Ip Rating | IP56 |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 2, NEMA 4, NEMA 13 |
| Number Of Pedals | 1 |
| Overall Depth | 9" |
| Overall Height | 4.37" |
| Overall Width | 5.88" |
| Power Source | Electrically Corded |
| Series | Hercules Series |
| Shields And Guards | Full shield |
| Standards | CSA, ROHS, UL LISTED |
| Switch Action | Momentary |
| Switch Type | Electrical |
| Termination Connection Type | Screw Terminal |
| Ship weight (kg) | 3.38 |
| Ship height (cm) | 11.1 |
| Ship length (cm) | 22.86 |
| Ship width (cm) | 14.94 |
| Country of Origin | US |
