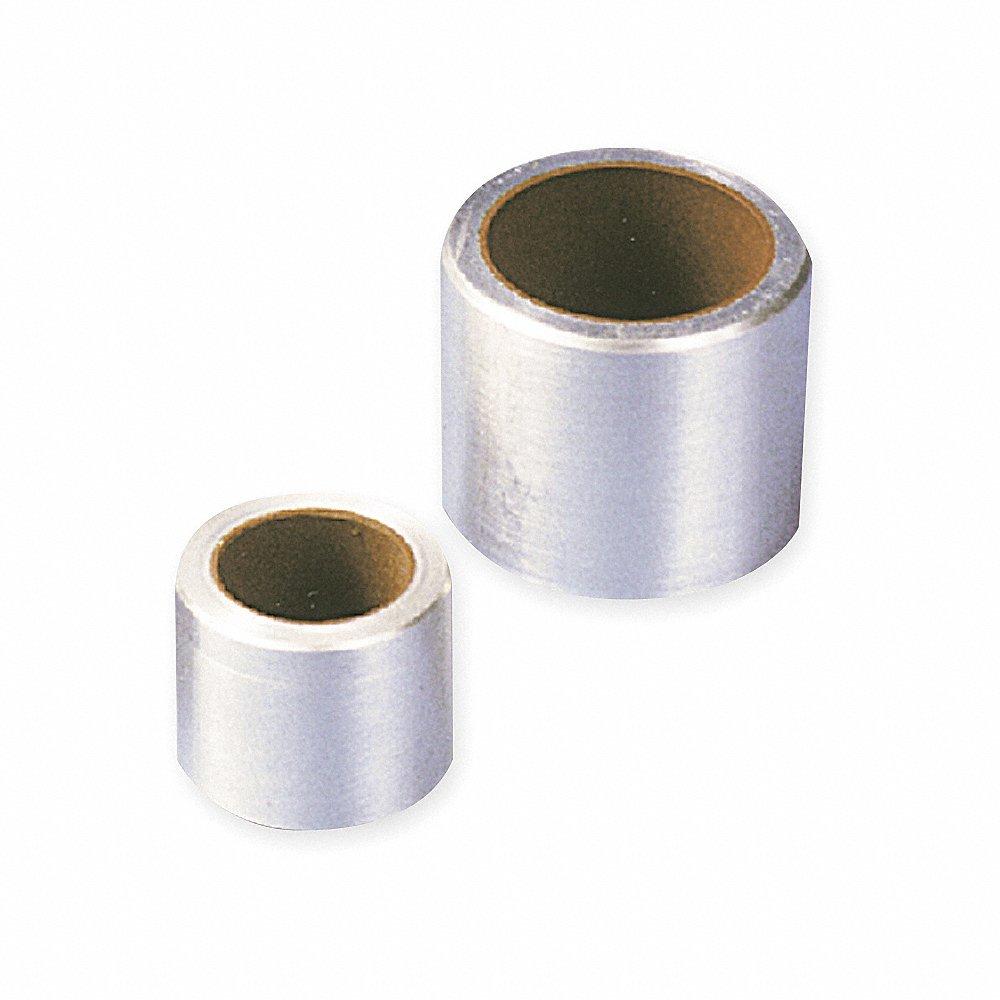

PBC LINEAR PSM0610-10 Pbc Linear Sleeve Bearing, 6 mm Inside Dia, 10 mm Length
Get it by Tuesday, Jun 17
€9.41 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Sleeve Bearing |
| Inside Dia. | 6 mm |
| Inside Dia. Tolerance | -0.001 to +0.001 |
| Length | 10 mm |
| Liner | Frelon Gold |
| Lubrication Type | Self Lubricating |
| Max. Operating Temp. | 400°F |
| Max. Pv | 20000 lbs.-ft./sq. in-min. |
| Mfr. Series | SIMPLICITY |
| Min. Working Temp. | -400°F |
| Operating Temp. Range | -400°F to +400°F |
| Outside Dia. | 10 mm |
| Outside Dia. Tolerance | -0.001 to +0.001 |
| Recommended Housing Bore | 10.05" |
| Shell Material | Aluminum |
| Static Load Capacity | 278 lbf. |
| System Of Measurement | Metric |
| Type | Closed |
| Bearing Type | Closed |
| Inside Diameter | 6.04 mm |
| Inside Diameter Tolerance | +0.058/+0.028 mm |
| Lubrication | Self-Lubricating |
| Material | Aluminum |
| Maximum Pv | 20000 lbs.-ft./sq. in-min. |
| Operating Temperature Range | -400°F to 400°F |
| Outside Diameter | 10.03 mm |
| Outside Diameter Tolerance | +0.038/+0.023 mm |
| Running Clearance Class | Precision |
| Series | PSM Series |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Model | Price | |
|---|---|---|
| PS2428-16 | €42.79 | |
| PS2024-16 | €36.90 | |
| PS2832-24 | €67.02 | |
| PSF2832-24 | €76.41 | |
| PS1620-12 | €25.23 | |
| PSF1620-12 | €33.68 | |
| PS0812-08 | €14.12 |
