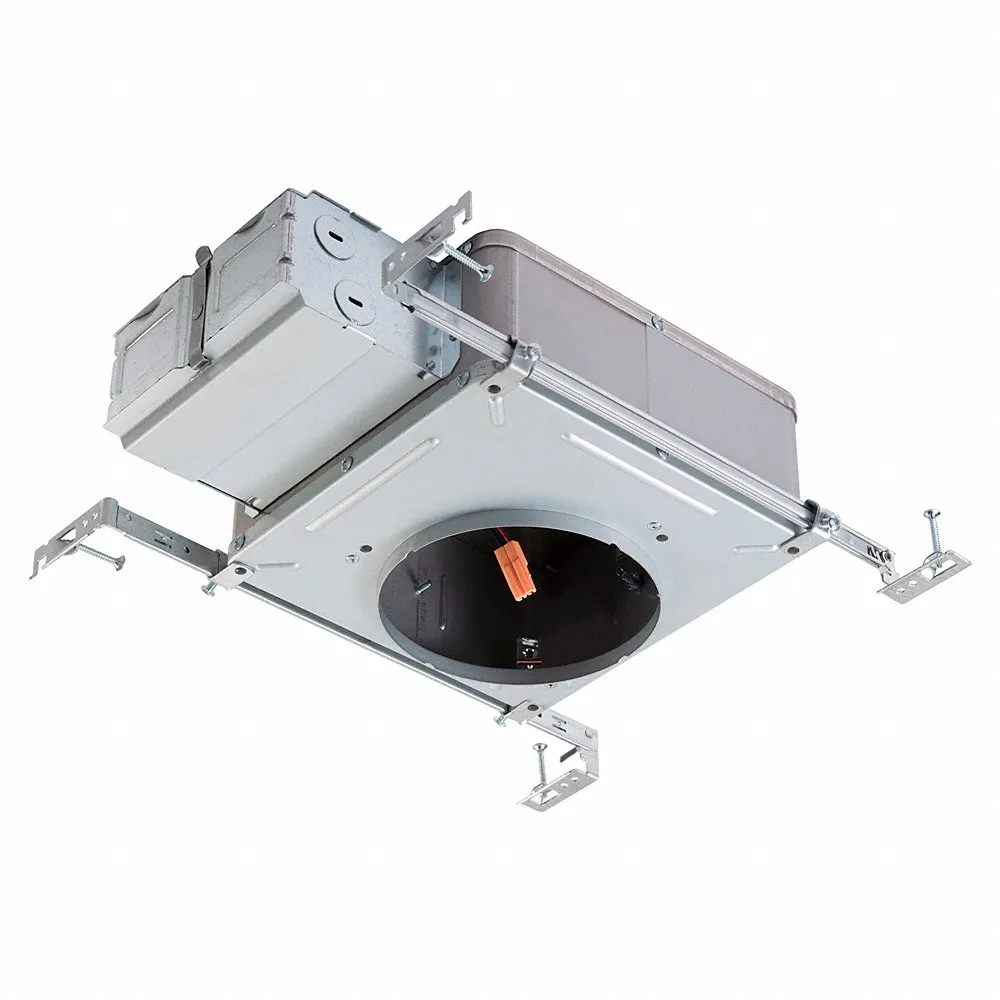

LIGHTOLIER L5R15AZ10UVA Downlight Frame-In Kit, 5 Inch Nominal Size, IC, Airtight
Get it by Tuesday, Jun 17
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Kit |
| Airtight | Yes |
| Ceiling Opening Required | 5 1/2" |
| Ceiling Slope Ratio | N |
| Ceiling Type | Slope Ceiling |
| Color Rendering Index | 80, 90 |
| Color Temperature | 2700 K, 3000 K, 3500 K, 4000 K |
| Color Tuning | No |
| Dimmable | Yes |
| Dimming Method | 0-10V |
| Dimming Range | 1% to 100% |
| Dimming Type | Full Continuous Dimming |
| Emergency Battery Backup | No |
| Environmental Rating | Wet Location Rated |
| Fixture Type | New Construction |
| Housing Color | Metallic |
| Housing Material | Steel |
| Ic Rating | IC |
| Includes | Class 2 LED Driver |
| Includes Baffle | No |
| Includes Driver | Yes |
| Includes Trim | No |
| Interconnection Capability | J Box |
| Led Replacement For | 65W BR30 |
| Light Output | 1500 lm |
| Lighting Certification | ENERGY STAR |
| Lighting Technology | LED |
| Manufacturers Warranty Length | 5 yrs. |
| Maximum Operating Temperature | 40°C |
| Maximum Wattage | 13 W |
| Minimum Operating Temperature | -20°C |
| Nominal Size | 5" |
| Overall Height | 3 3/8" |
| Overall Length | 24" |
| Overall Width | 13 1/2" |
| Rated Life | 50000 hrs. |
| Reflector Or Baffle Color | No Reflector or Baffle |
| Series | L5R Series |
| Standards | CULUS LISTED, ROHS COMPLIANT |
| Suggested Bulb Type | BR30 |
| Trim Color | Trim Available Separately |
| Voltage | 120-277V AC |
| Ship weight (kg) | 1.85 |
| Ship height (cm) | 8.57 |
| Ship length (cm) | 60.96 |
| Ship width (cm) | 34.29 |
| Country of Origin | US |
| Product | Model | Item | Price | |
|---|---|---|---|---|
 |
L4RBW | Trim | - | RFQ
|
 |
L6RBW | Trim | - | RFQ
|
 |
L4R10AZ10UVA | Kit | - | RFQ
|
|
L4RAZ10UVA | Kit | €97.12 | |
|
L5R15AE1VA | Kit | - | RFQ
|
 |
L6R20AE1VA | Kit | - | RFQ
|
|
L6R20AZ10UVA | Kit | - | RFQ
|
